6 pin magnetic cable charger electrical pin connector

[CXA-0008]6 pin magnetic cable charger electrical pin connector

  • P/N: CXA-0008
  • Magnetic force: 15 N，support upgrade
  • Rated Voltage&Current: 12 V,3 A, faster recharge
  • Life test: 20,000 cycles,100% open & short test
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Categories: , Tags: , ,

Description

6 pin magnetic cable charger electrical pin connector. Every magnetic charger cable is specially engineered so you can connect it magnetically to your from electronic products, and you can use it charge your electronics. Humanized design automatic adsorption connected experience, easy operation.

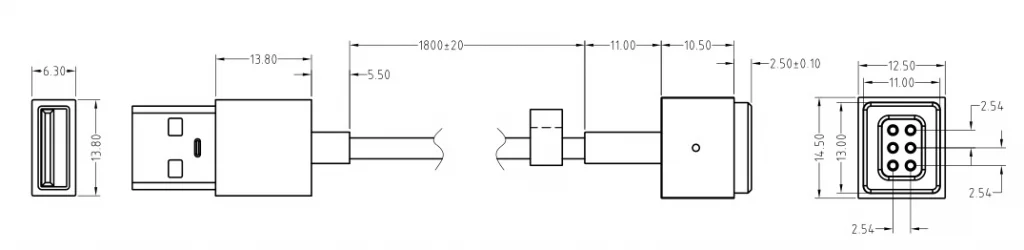

Specification of 6 pin magnetic cable charger electrical pin connector—Male Part

6 pin magnetic cable charger electrical pin connector

Part No.  CMA-0008
Contact force  70±20 g at 1.0 mm working stroke
Life test 20,000 cycles
Rated voltage & current 12 V, 3 A
Contact resistance 50 milliohm Max
Application Speakers, Controllers,Automotive equipment,Electric bicycle panel

Specification of 6 pin magnetic cable charger electrical pin connector—Female Part

6 pin magnetic cable charger electrical pin connector

Part No. MFA-0009
Rated voltage & current 12 V, 2 A
Contact resistance 50 milliohm Max
Application Speakers, Controllers,Automotive equipment,Electric bicycle panel

Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
