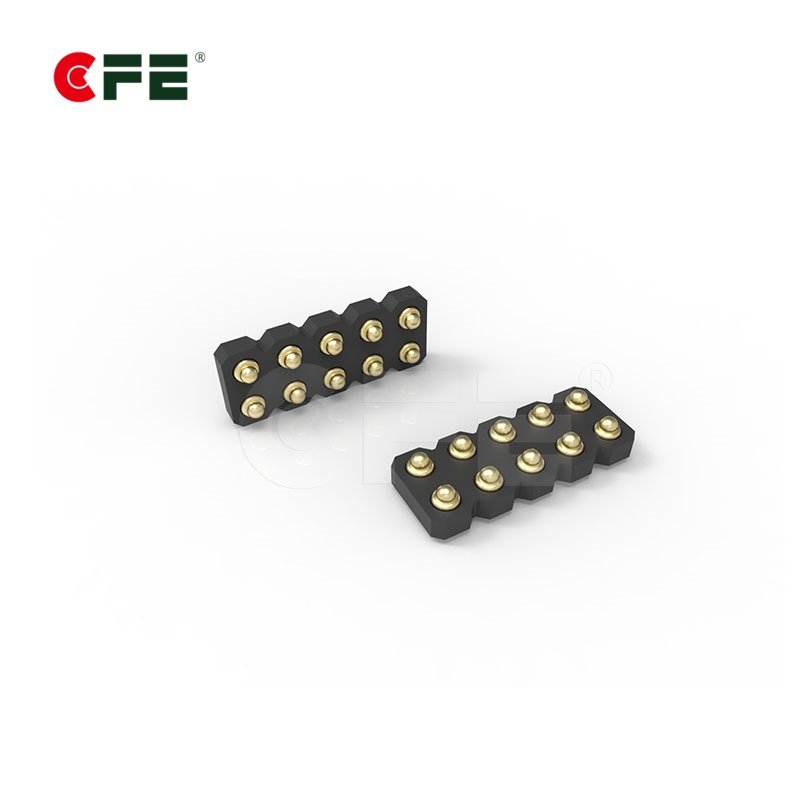

[BF19424-10254S0A] 2.54 mm pitch SMT SMD pogo pin connector manufacturers

  • Lead-free, halogen-free precision connectors
  • No need to use receptacles, which help reduce total costs
  • Advantageous for saving space and downsizing
  • Permits “one-touch” attachment and removal, and are highly durable

Description

2.54 mm pitch SMT SMD pogo pin connector manufacturers. 10 pin connector, 2.54mm pitch, 2-40 pin standard products. CFE’s innovative design leads the industry, enabling engineers to specify the right connector for their application. Our connector can be customized high current charger pogo pin more 1600 items(2A-20A) and customized pogo pin connector more 300 items(2pin-64pin).

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of 2.54 mm pitch SMT SMD pogo pin connector manufacturers


 2.54 mm pitch SMT SMD pogo pin connector manufacturers

Download PDF

Part No. BF19424-10254S0A
Materials Insulator Black high temperature plastic UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 150g ±20% at 0.5mm working stroke
Life test 50,000 cycles
Electrical Rated current and voltage 12V DC, 1A
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

Application of 2.54 mm pitch SMT SMD pogo pin connector manufacturers

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread

Contact us

Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long.  As the leading electronic components manufacturer in China,  CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
