[MF811-1124-L10100A] 2mm pitch pogo pin spring connector suppliers

[MF811-1124-L10100A] 2mm pitch pogo pin spring connector suppliers

  • 2mm pitch spring connector
  • Easily adapted to customer needs
  • Spring strength can be measured and regulated
  • CFE has produced more than hundreds items of standard product
Inquiry Now

Description

2mm pitch pogo pin spring connector suppliers.These soldercup connectors are ideal for wire termination applications where direct wire connections are required. They eliminate the difficulties of soldering wires directly to boards and the headers and sockets form mating pairs for easy configuration of interconnects, such as PC boards or other cable assemblies. Learn more about 2.0mm Pitch SMT Pogo Pin Connector

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of 2mm pitch pogo pin spring connector suppliers

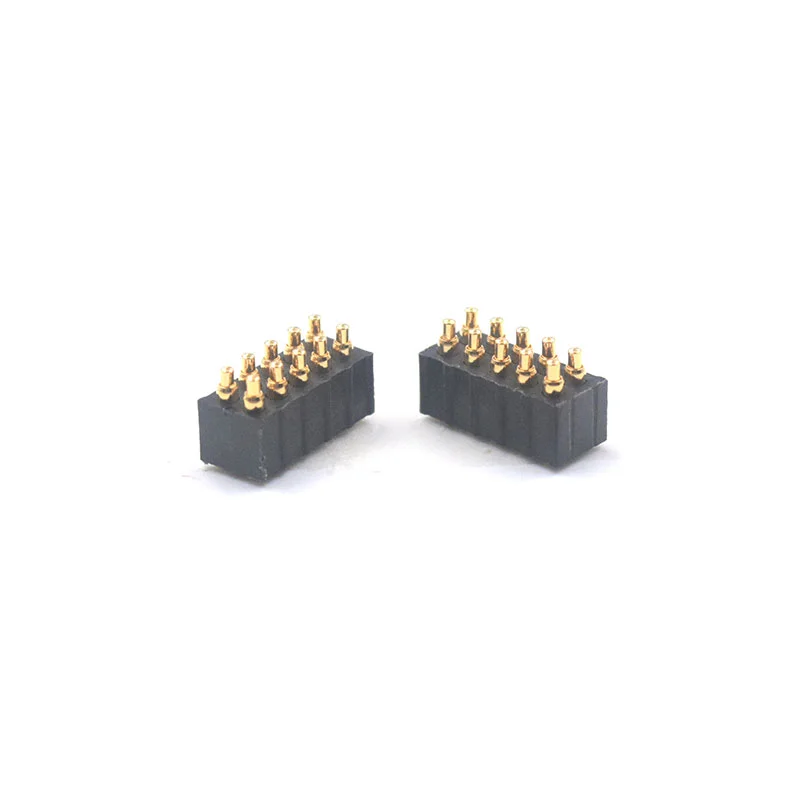

 2mm pitch pogo pin spring connector suppliers

spring connector

Part No. MF811-1124-L10100A
Materials Insulator Black high temperature plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70±20g at 1.00mm working stroke
Full stoke 1.4mm
Life test 20,000 cycles
Electrical Rated current and voltage 12V DC, 3A
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Type of 2mm pitch pogo pin spring connector suppliers

Learn more details, download our drawings

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
