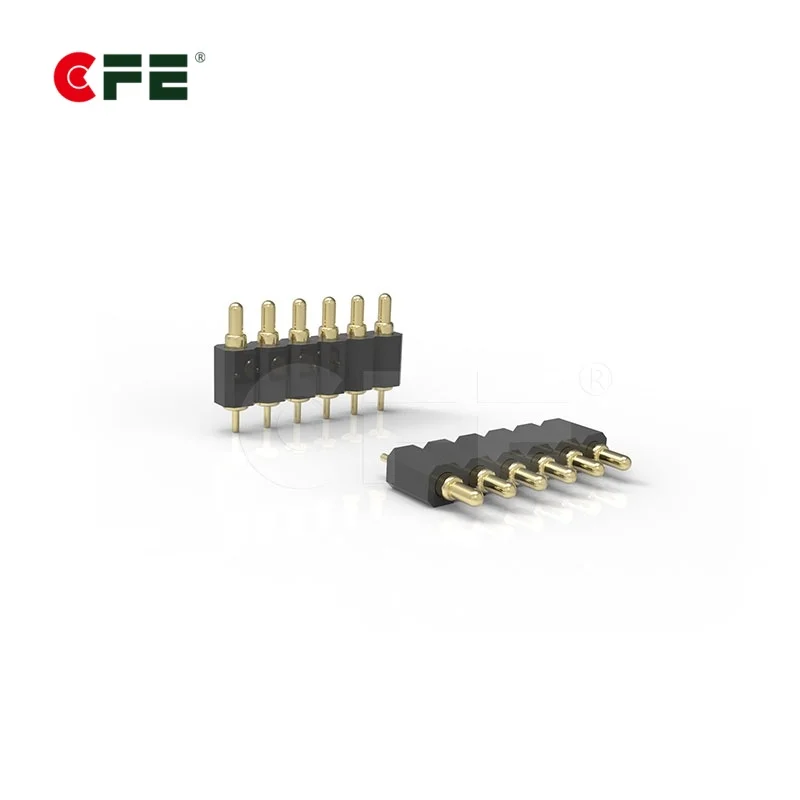

[MP310-3133-E06100A] DIP 2.54 mm pitch spring terminal connector

[MP310-3133-E06100A] DIP 2.54 mm pitch spring terminal connector

  • Insulator:Black plastic (265℃) UL94 V-0
  • Spring force: 90g±20% at 1.0mm working storke
  • Full stroke:1.40mm
  • Contact resistance:50 milliohm Max
Inquiry Now

Description

DIP 2.54 mm pitch spring terminal connector. Dip type pins with positioning pin on the bottom of barrel. Hard to shift after mounted on PCB Good performance on positioning. Pogo connect provide a highly-reliable, precision made interconnect solution ideal for a number of demanding application requirements in the fast moving world of electronic interconnects.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of DIP 2.54 mm pitch spring terminal connector


 DIP 2.54 mm pitch spring terminal connector

Download PDF

Part No. MP310-3133-E06100A
Materials Insulator Black high (265℃) plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g+20g at 1.0mm working stroke
Full stroke 1.40mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V,3A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
