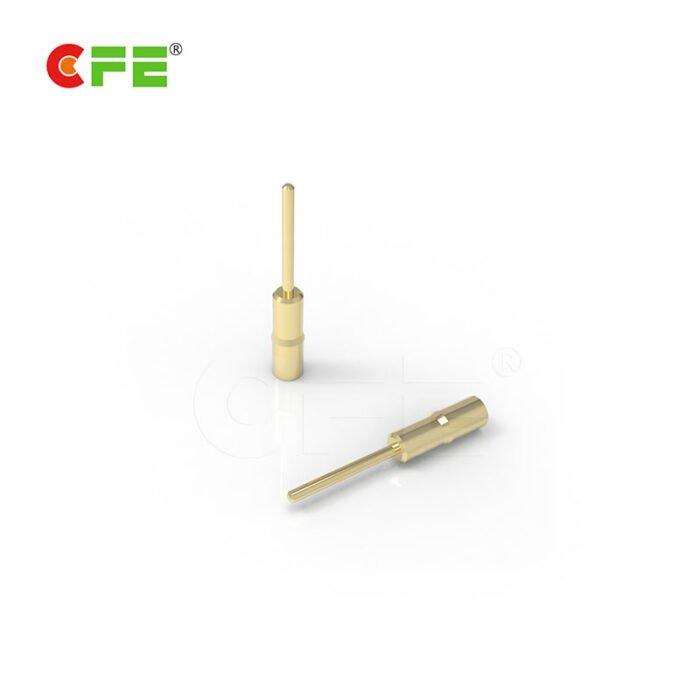

[B947-W1050] DIP female pins for spring loaded pins electronics

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze

  • Plating: Gold plated (According to customer requirements)

  • Variety heights design, lowest can be 1.33 mm

  • Life test: 20,000~1000,000 cycles

Inquiry Now

Description

DIP female pins for spring loaded pins electronics, all contacts are precision machined. CFE has spring-loaded pins that corresponding single and double row connectors. The pins we have variety heights design for your need. And you can customized the pogo pin, you only need to tell us the size and some important parameters.

Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of DIP female pins for spring loaded pins electronics


 spring loaded pins electronics

Download PDF

Part No. B947-W1050
Materials Body brass Au(C3604/C3602)over Ni
Mechanical Salt spray test  48 hours
plating Au-5u”
Life test  100,000 cycles
Process CNC Turning

Type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
