- Rated Voltage&Current: DC 5V,2A
- Single pin static impedance: 30 milliohm Max
- Operating Temperature: -40 to +105℃
- Temperature Resistance: 260℃
- Plating Layer: Nickel plating
- Forming Method: Stamping and molding in-mold process

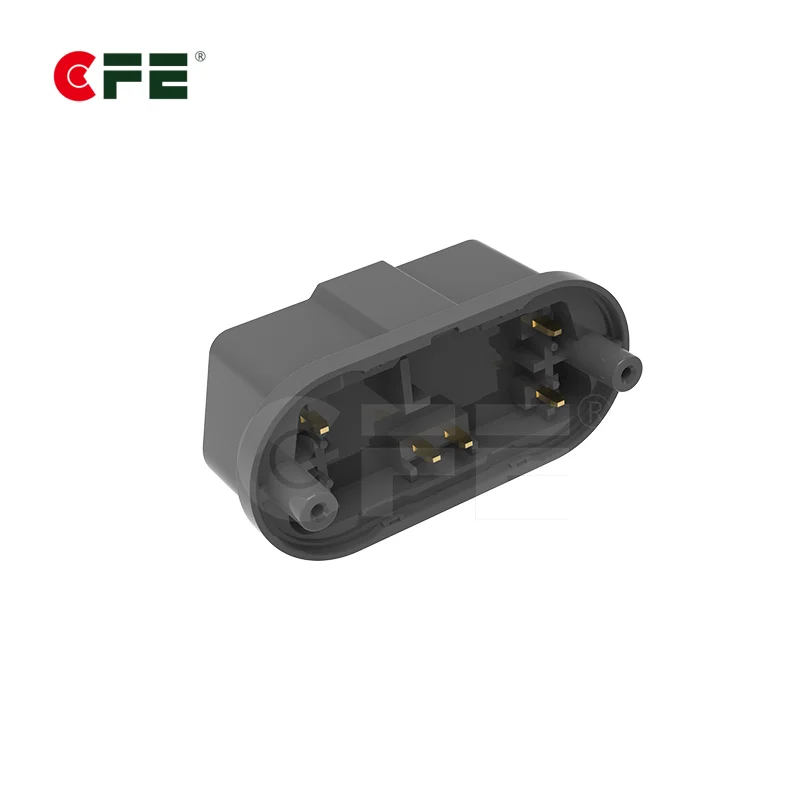

[BP320101-05000H0F] OBD connector
Description
On-board diagnostics (OBD) refers to a vehicle’s self-diagnostic and reporting capability. The amount of diagnostic information available via OBD has varied widely since its introduction in the early 1980s versions of onboard vehicle computers. The OBD interface is an essential interface for automobiles, allowing maintenance personnel to quickly detect automobile faults. CFE has developed a highly customized OBD connector/OBD interface for customers to facilitate connection with electronic equipment. Based on the connection method, CFE has designed a highly reliable and simple structure to ensure smooth assembly with equipment.
 |
Part No. | BS30131-F | |
| Environmental Performance | Operating Temperature | -40 to +105℃ | |
| Temperature Resistance | 260℃ | ||
| Salt Spray | 5% salt solution, no rust for 48hours | ||
| Electrical Performance | Rated Voltage | DC 5V | |
| Rated Current | 2A | ||
| Single pin static impedance | 30 milliohm Max | ||
| Others | Plating Layer | Nickel plating | |
| Forming Method | Stamping and molding in-mold process | ||
Learn more about How to order special pogo pin, If you have special requirements please contact us
You may like our customized pogo pin connector
Application of solder cup type pogo pin spring contact
 |
 |
 |
||
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
