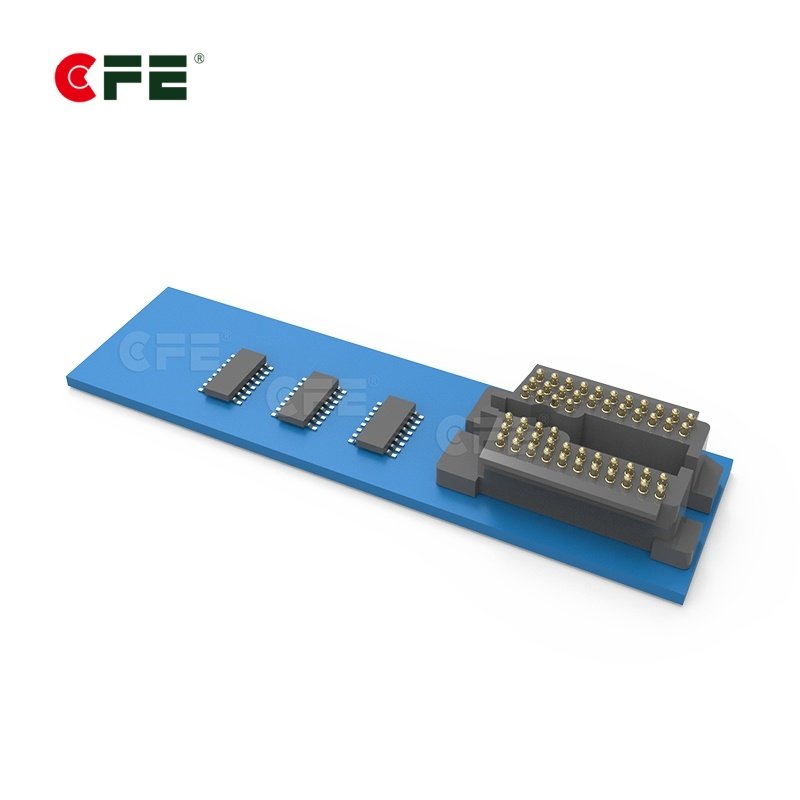

[52180-H01]HP45 head driver board printer spring pin socket for cartridges

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:50,000 cycles
  • Rated current & voltage: DC 12V; 2A

Description

HP45 head driver board printer spring pin socket for cartridges manufacturer in China. Our spring Pogo pin or spring loaded pins, is reliable quality and quick to install. Bending tail design of barrel of these right angle Pogo pin offers engineers to have more choices on space adjustment. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

HP45 head driver board printer spring pin socket for cartridges


Hp 45 pogo pin connector

PDF download

Part No. 52180-H01
Materials Plunger Brass 0.125um Au over Ni
Barrel Brass 0.125um Au over Ni
Spring SUS surface treatment
Mechanical Contact force
Full stroke 2.5mm
Life test 50,000 cycles
Electrical Rated current and voltage 12V2A
Contact-resistance 50 milliohm Max

52PIN

52pin

HP45 head driver board printer spring pin socket for cartridges

The unit of  A, B, C, D, E, F, G and Stroke is mm

Part NO.A B C D E F G H Stroke(mm)Force(g)Current(A)PDF
BP003116.804.800.804.503.002.001.85/1.503002
BP003226.804.800.804.503.002.001.85/1.00903
BP094017.104.001.003.502.501.807.5014.003.001201
BP094027.104.001.003.502.501.805.009.003.001201
BP101115.002.85//2.001.500.5015.951.201102
BP101215.002.85//2.501.900.5017.551.501102
BP101314.902.85//2.001.500.5010.351.201202
BP30841-06254E0A8.005.30///1.002.005.001.00703
BP32011-04508E0A7.005.30///1.002.003.001.00703
BP416115.504.300.401.801.481.002.008.001.00703
BP43401-06254H0B3.602.90/1.501.80/2.004.50//1
BP43411-06254H0A6.104.600.801.501.501.002.003.001.00701
BP478118.006.800.401.801.481.002.003.001.00703

Learn more about How to order special pogo pin, If you have special requirements please contact us

You may like our customized pogo pin connector



Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc
