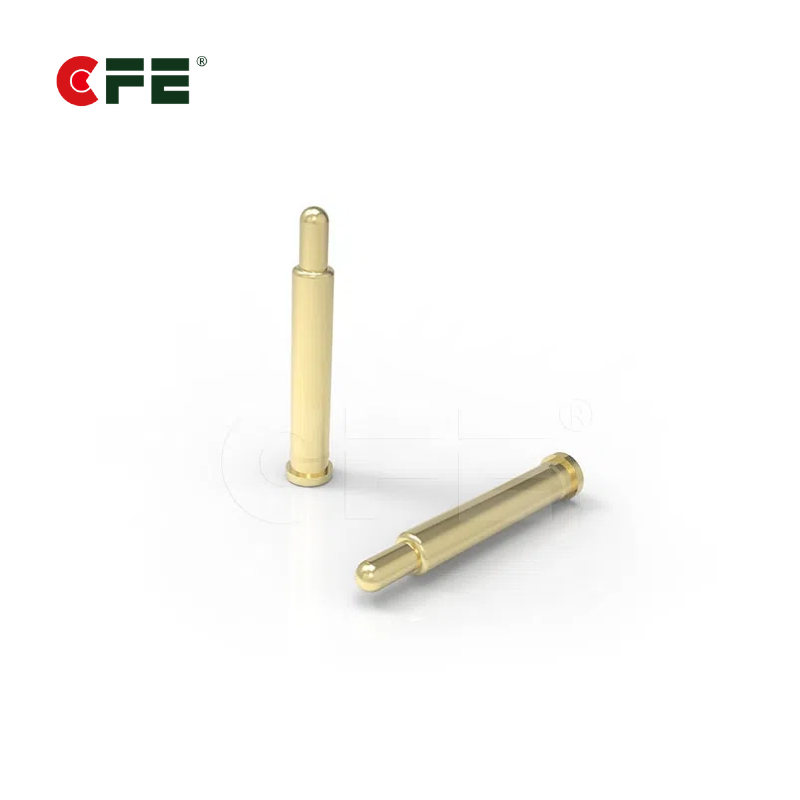

[BP68011] Threaded pogo pins contacts suppliers

  • Insulate spring: SUS and music wire materials, surface can be gold-plated (low impedance)

  • High durability: the pogo pin contacts life highest can be 1,000,000 times

  • High rated current: we have largely produced high rated current 5-10A

  • RApplication: PCB, AV equipment, Data communication device,health equipment

Inquiry Now

Description

Threaded pogo pins contacts suppliers. Whether your application requires through-hole mounting, surface mount, wire termination, press-fit or features for alignment, CFE has over 100 styles to choose from to ensure you find the right spring-loaded pin for your design. What’s more, the pogo pin is high durability, it’s  highest life can be 1,000,000 times.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of Threaded pogo pins contacts suppliers


 Threaded pogo pins contacts suppliers

Download PDF

Part No. BP68011
Materials Plunger Brass 0.50um Au over Ni
Barrel Brass 0.50um Au over Ni
Spring SUS 304 Au
Mechanical Contact force 360g ±20% at 4.0mm working stroke
Full stroke 8.0mm
Life test 100,000 cycles
Electrical Rated current and voltage 12V DC, 1A
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

Application of Threaded pogo pins contacts suppliers

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
