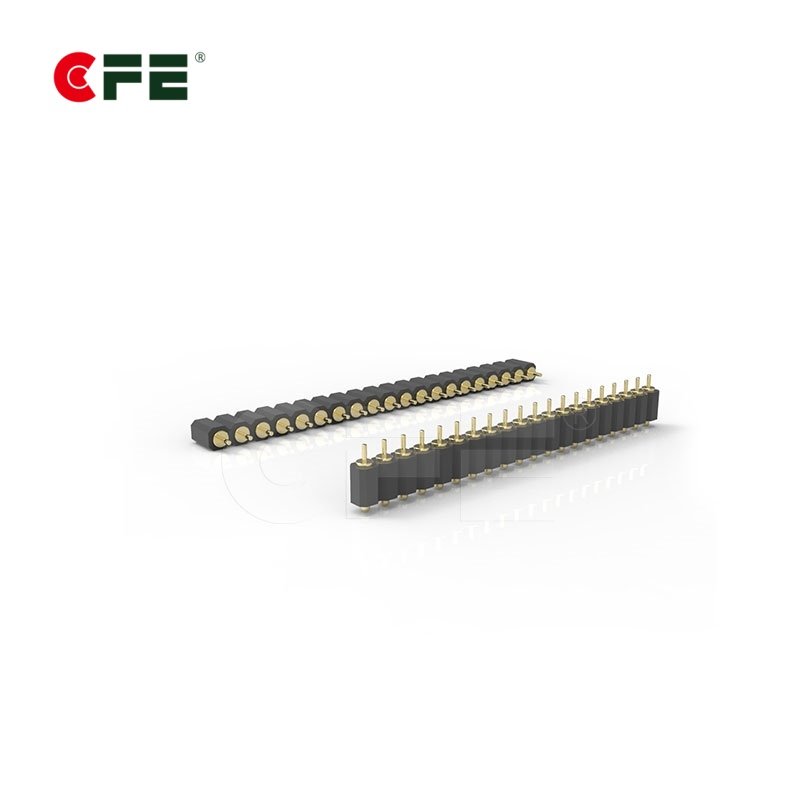

[MP210-1144-E20100A] 2.54 mm pitch pogo pin spring battery connector

[MP210-1144-E20100A] 2.54 mm pitch pogo pin spring battery connector

  • 2.54 mm pitch spring battery connector
  • Easily adapted to customer needs
  • Permits “one-touch” attachment and removal, and are highly durable
  • Advantageous for saving space and downsizing,RoHs Compliant and Halogen-free
Inquiry Now

Description

2.54 mm pitch pogo pin spring battery connector.The insulate spring of pogo pin is SUS and music wire materials, surface can be gold-plated (low impedance) or insulation layer plating (high current). CFE Pogo Pin contacts provide high cycle life in industrial and medical applications where reliability and robustness is critical.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of 2.54 mm pitch pogo pin spring battery connector


 Though hole spring loaded probe connector

Download PDF

Part No. MP210-1144-E20100A
Materials Insulator Black high (265℃) plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g+20g at 1.0mm working stroke
Full stroke 1.40mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V,3A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
