4 Pin Male and female magnetic pogo connector
4 Pin Male and female magnetic pogo connector

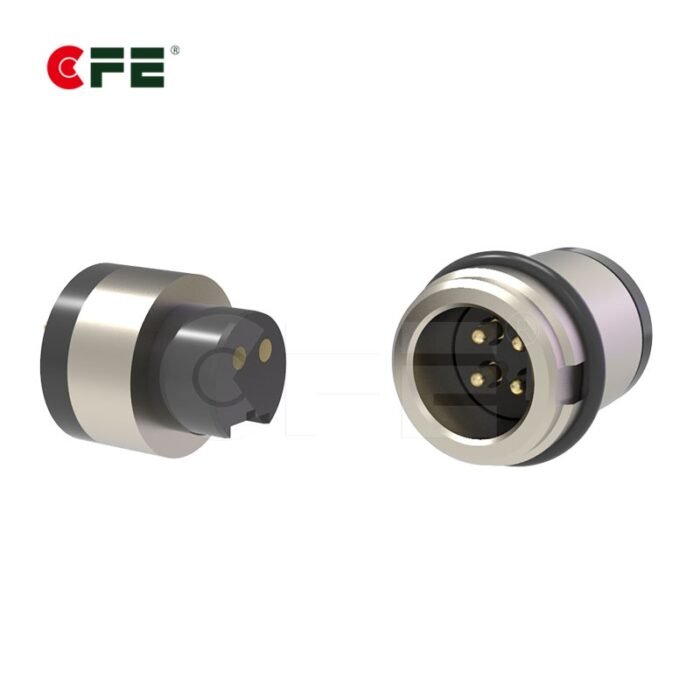

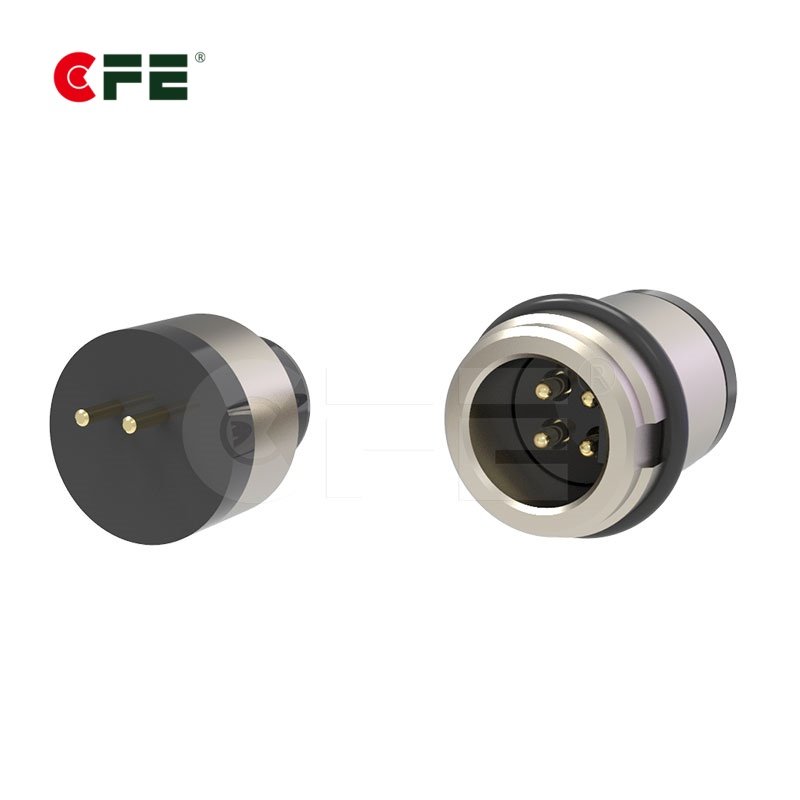

[MXA0025] 4 Pin male and female magnetic pogo pin connector

  • P/N:MXA0025
  • Magnetic force: 3 N
  • Rate Voltage&Current: DC 12 V, 2 A
  • Life test: 20,000 cycles
  • Environment: anti-corrosion, 48 hours salt-spray test
    Pass Rohs, reach, HF, environmental protection
Inquiry Now
Categories: , , Tags: , ,

Description

4 Pin male and female magnetic pogo pin connector, CFE is a professional manufacturer of magnetic connector in global market. The products used for charging, bluetooth earphone etc, and can achieve waterproof function, CFE Male and female magnetic pogo pin connector ensures compact design, stable connection, diverse uses and safe protection when detached from devices.

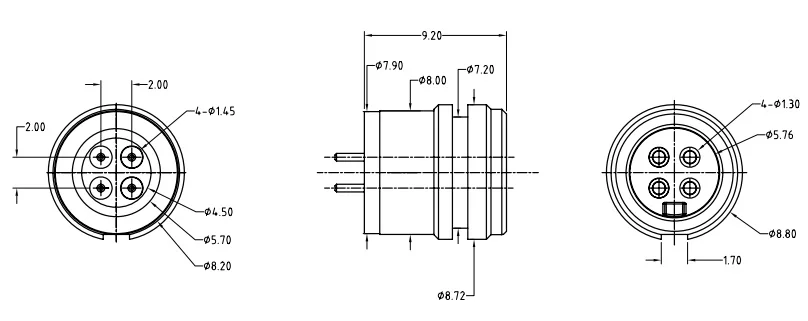

Specification of 4 Pin male and female magnetic pogo pin connector—Male Part

4 Pin Male and female magnetic pogo connector

Part No. MMA0025
Contact force 40±20g at 0.7mm working stroke
Life test 20,000 cycles
Rated voltage & current 12V, 2A
Contact resistance 50 milliohm Max
Application bluetooth earphone
 Downloaded



Specification of 4 Pin male and female magnetic pogo pin connector—Female Part

4 Pin Male and female magnetic pogo connector

Part No. MFA0025
Rated voltage & current 12V, 2 A
Contact resistance 50 milliohm Max
Magnet NdFeB
Application bluetooth earphone
Downloaded



CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
