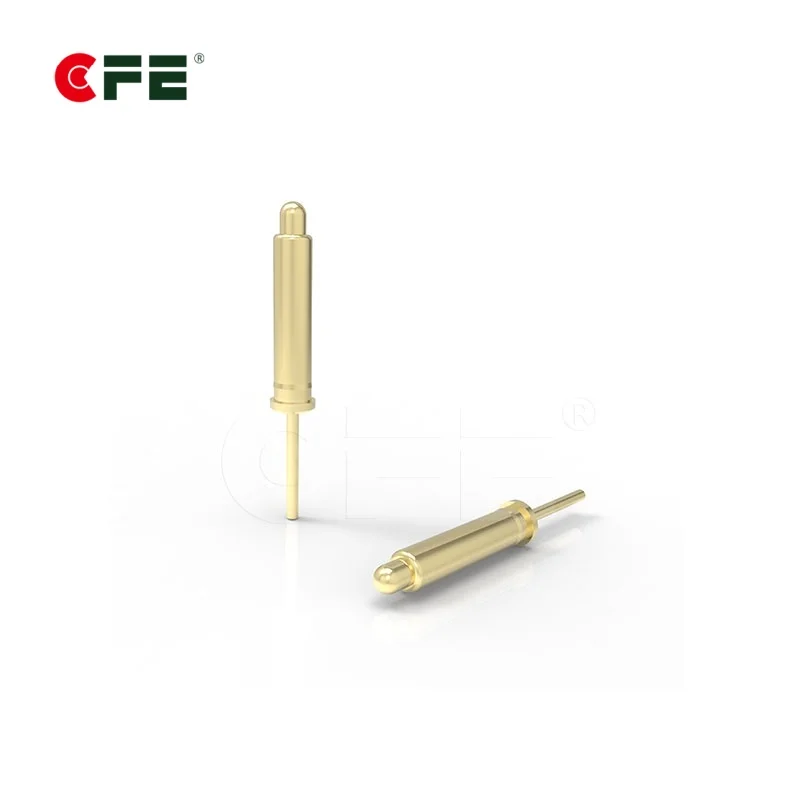

[BP47811] Spring Pogo pin contact 3a manufacturer

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:50,000 cycles
  • Rated current & voltage: DC 12V; 3A
Inquiry Now


Spring Pogo pin contact 3a manufacturer in China. Our spring Pogo pin or spring loaded pins, is reliable quality and quick to install. Bending tail design of barrel of these right angle Pogo pin offers engineers to have more choices on space adjustment. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

Specification of Spring Pogo pin contact 3a manufacturer

 Right angle spring contact 3a manufacturer

PDF download

Part No. BP47811
Materials Plunger Brass 0.125um Au over Ni
Barrel Brass 0.125um Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g±20g at 1.0mm working stroke
Full stroke 1.4mm
Life test 50,000 cycles
Electrical Rated current and voltage DC 12V; 3A
Contact-resistance 50 milliohm Max


Customized service

 Spring Pogo pin contact 3a manufacturer

The unit of  A, B, C, D, E, F, G and Stroke is mm

Part NO.A B C D E F G H Stroke(mm)Force(g)Current(A)PDF

Learn more about How to order special pogo pin, If you have special requirements please contact us

You may like our customized pogo pin connector

Application of Spring Pogo pin contact 3a manufacturer


Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc

Learn more type of Pogo pin

Spring loaded pin Spring loaded pin  pogo pin Bending Spring loaded pin Spring loaded pin Spring loaded pin
 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
