- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:20,000 cycles
- Rated current & voltage: DC 12V; 1A
Description

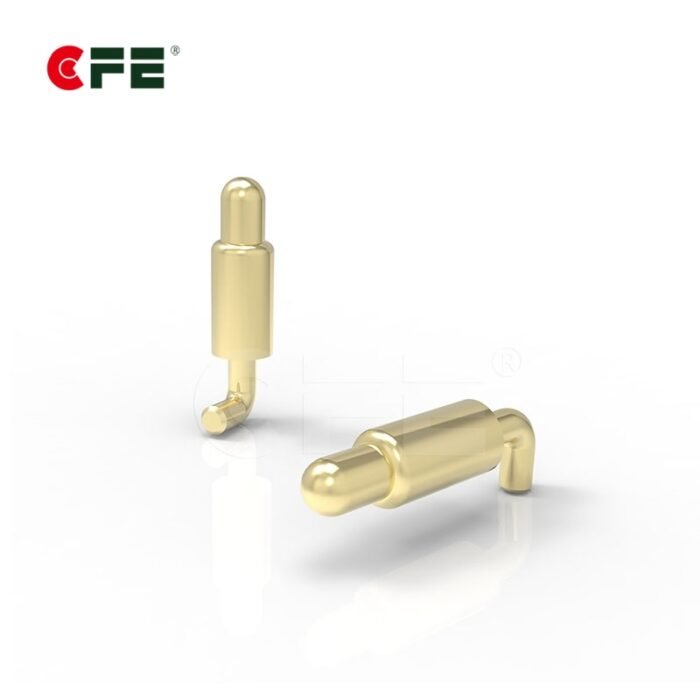

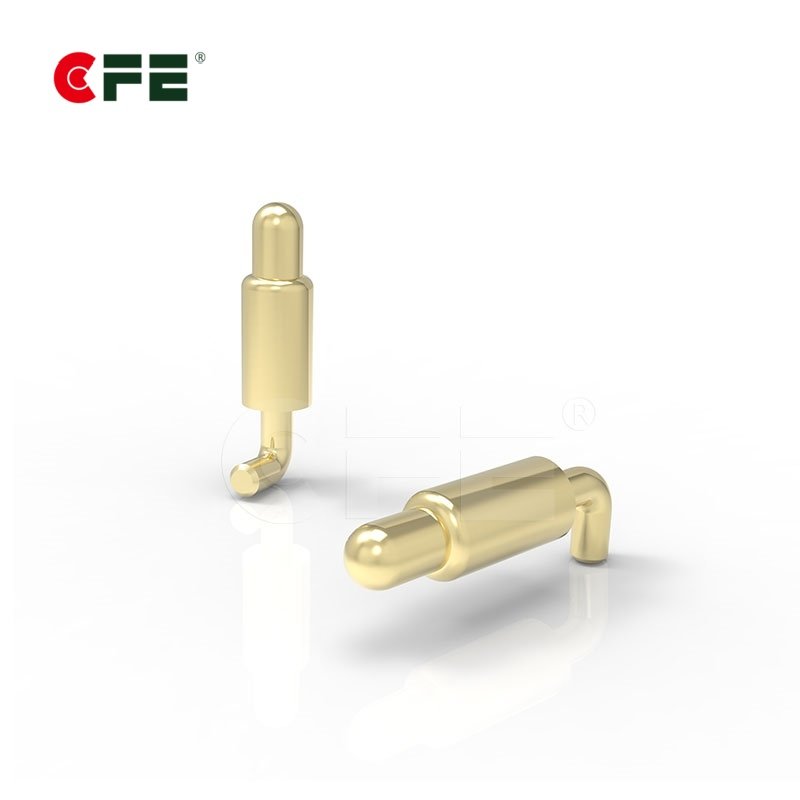

Spring loaded pin right angle supply in China. Our right angle pogo pin or spring loaded pins, is reliable quality and quick to install. Bending tail design of barrel of these right angle pogo pin offers engineers to have more choices on space adjustment. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
Specification of Spring loaded pin right angle
|
Part No. | BP69711 | |
| Materials | Plunger | Brass C3604 0.025um Au over Ni | |
| Barrel | Brass C3602 0.025um Au over Ni | ||
| Spring | SUS 304 Au | ||
| Mechanical | Contact force | 40g±20g at 1.50mm working stroke | |
| Full stroke | 3.0mm | ||
| Life test | 20,000 cycles | ||
| Electrical | Rated current and voltage | DC 12V; 1A | |
| Contact-resistance | 50 milliohm Max | ||
Customized service

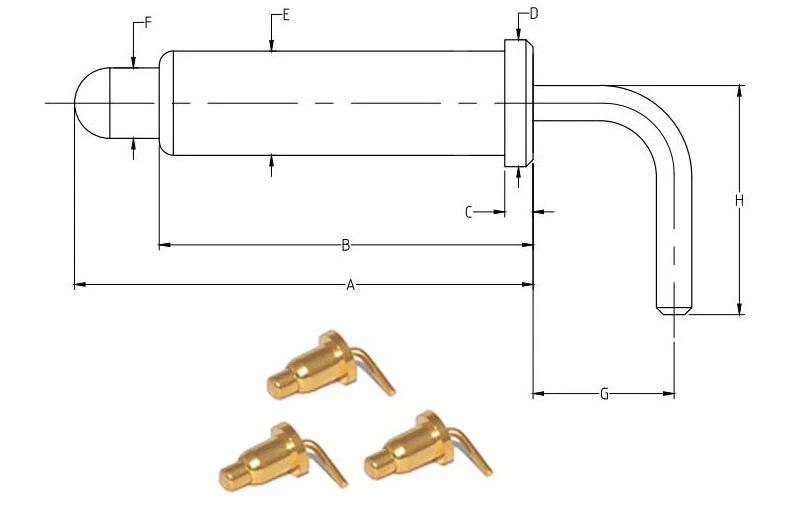

The unit of A, B, C, D, E, F, G and Stroke is mm
| Part NO. | A | B | C | D | E | F | G | H | Stroke(mm) | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BP00311 | 6.80 | 4.80 | 0.80 | 4.50 | 3.00 | 2.00 | 1.85 | / | 1.50 | 300 | 2 |  |
| BP00322 | 6.80 | 4.80 | 0.80 | 4.50 | 3.00 | 2.00 | 1.85 | / | 1.00 | 90 | 3 | |
| BP09401 | 7.10 | 4.00 | 1.00 | 3.50 | 2.50 | 1.80 | 7.50 | 14.00 | 3.00 | 120 | 1 | |
| BP09402 | 7.10 | 4.00 | 1.00 | 3.50 | 2.50 | 1.80 | 5.00 | 9.00 | 3.00 | 120 | 1 | |
| BP10111 | 5.00 | 2.85 | / | / | 2.00 | 1.50 | 0.50 | 15.95 | 1.20 | 110 | 2 | |
| BP10121 | 5.00 | 2.85 | / | / | 2.50 | 1.90 | 0.50 | 17.55 | 1.50 | 110 | 2 | |
| BP10131 | 4.90 | 2.85 | / | / | 2.00 | 1.50 | 0.50 | 10.35 | 1.20 | 120 | 2 | |
| BP30841-06254E0A | 8.00 | 5.30 | / | / | / | 1.00 | 2.00 | 5.00 | 1.00 | 70 | 3 | |
| BP32011-04508E0A | 7.00 | 5.30 | / | / | / | 1.00 | 2.00 | 3.00 | 1.00 | 70 | 3 | |
| BP41611 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 2.00 | 8.00 | 1.00 | 70 | 3 | |
| BP43401-06254H0B | 3.60 | 2.90 | / | 1.50 | 1.80 | / | 2.00 | 4.50 | / | / | 1 | |
| BP43411-06254H0A | 6.10 | 4.60 | 0.80 | 1.50 | 1.50 | 1.00 | 2.00 | 3.00 | 1.00 | 70 | 1 | |
| BP47811 | 8.00 | 6.80 | 0.40 | 1.80 | 1.48 | 1.00 | 2.00 | 3.00 | 1.00 | 70 | 3 | |
