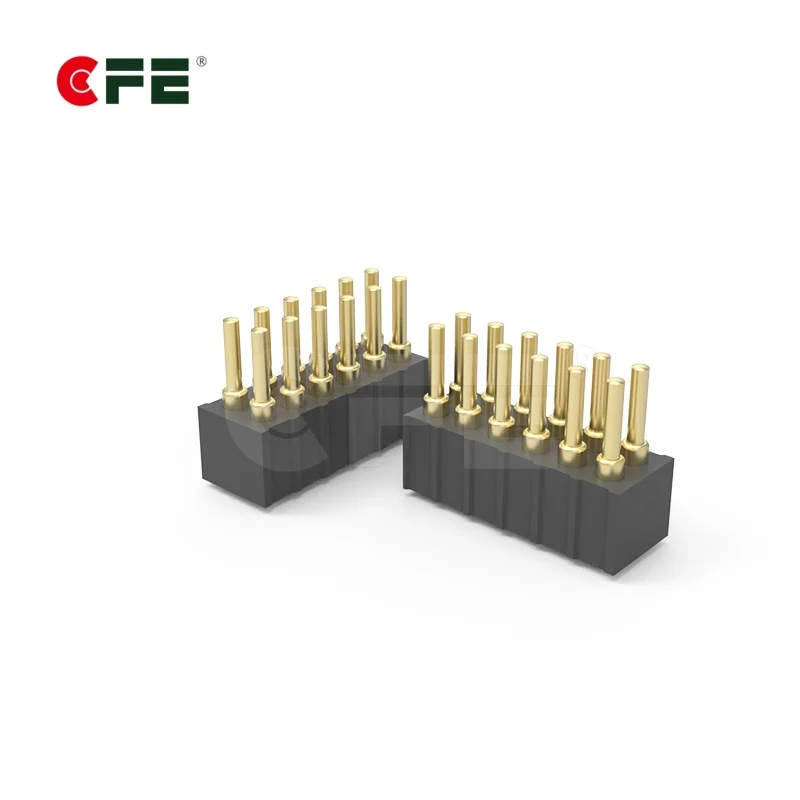

[BF302501-12200L0F] 12 pin signal pogo pin manufacturers

Barrel & plunger: Brass/Be-Cu/Phosphor bronze
Plating: Gold plated (According to customer requirements)
Spring: SUS surface treatment
Life test:10,000 cycles
Rated current & voltage: DC 12V; 1A (Can be customized)

Description

Description

12 pin signal pogo pin manufacturers. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

CFE Pogo Pin Connector Advantages

We have 14 years experience for pogo pin connector, high current connection, high life cycles, low impedance,corrosion resistance and other reliability.
Customize high current pogo pin more 1600 items(2A-30A).
Customize Pogo pin connector more 300 items(2pin-30pin).
Development 1.27Pitch 2-40pin standard products(6mm-15mm height).
2.54mm pitch 2.5mm & 4.0mm housing,1-68pin standard products, 2-128pin double row standard pogo pin connector products (4.5mm-15mm height) SMT/DIP/Right Angle/Solder Cup.
Development low height pogo pin 1.3mm-4.4mm for customer options.

Specification of 12 pin signal pogo pin connector

PDF Download	Part No.	BF302501-12200L0F
	Materials	Plunger	Brass 0.375um Au over Ni
		Barrel	Brass 0.375um Au over Ni
		Spring	SUS surface treatment
	Mechanical	Contact force	70g±20g at 2.0mm working stroke
		Full stroke	2.30mm
		Life test	20,000 cycles
	Electrical	Rated current and voltage	DC 12V; 3A (Can be customized)
	Electrical	Contact-resistance	30 milliohm Max

Drawings of 12 pin signal pogo pin connector

12 pin pogo pin connectors

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Application of 4 pin signal pogo pin connector

Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

Consumer electronics products/PCB board
Digital camera/Medical products/ Printer cartridges
Golf handle/ Electric vehicles/ Telephony applications
Cardiac defibrillator/Car charging /Air purifier
LED flat luminaries/LED flash light/Tablet/Laptop/PC
Power bank/ Digital product/ Small household electrical application
Charging products/Signal transmission products etc

Learn more type of Pogo pin


SMT/SMD		DIP		Right angle		Double head		Solder cup		Screw thread
