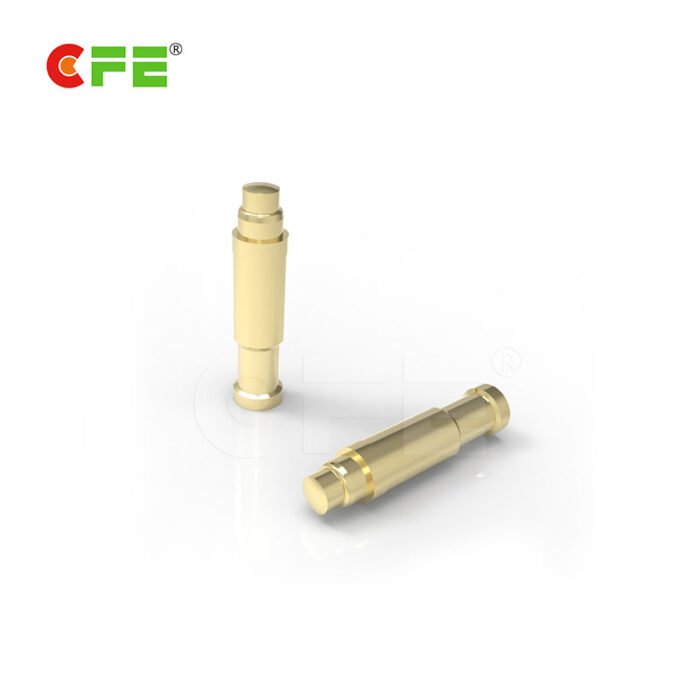

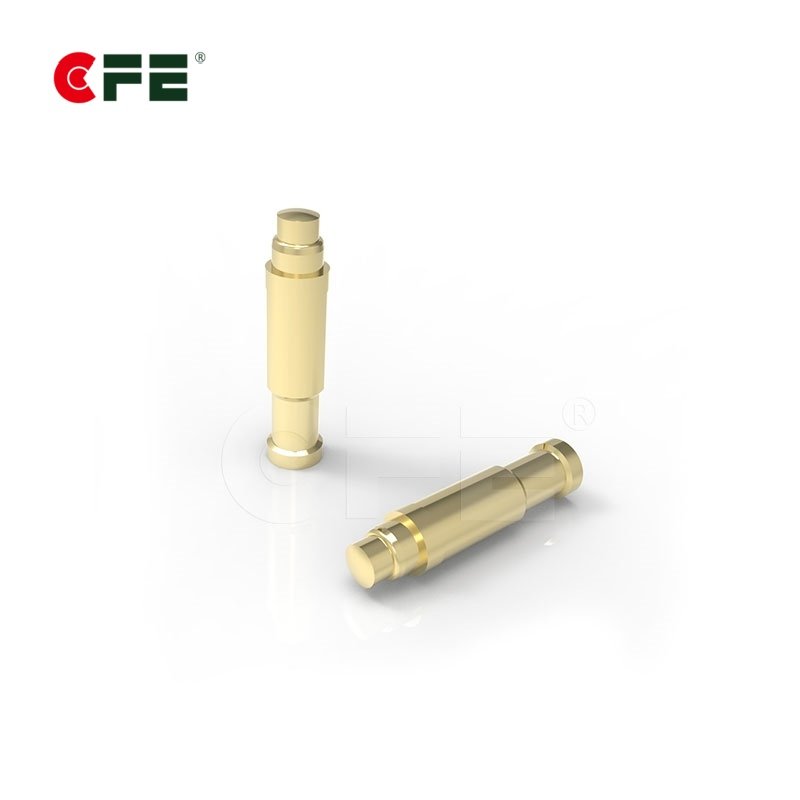

[BP93111] High current pogo pins for interconnect device

Description

High current pogo pins for interconnect device. Pogo pins are gold-plated brass components and beryllium copper springs ensure the highest conductivity, corrosion resistance and durability. We have largely produced 5A high rated current pogo pin and it’ s ife test can be 20,000~1000,000 cycles.

Advantages of our company

• World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
• World’s second manufacturer developed 1.27 pitch pogo pin connector
• Asia’s first manufacturer achieved compression mechanical 1 million life times
• Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
• China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of High current pogo pins for interconnect device

Download PDF	Part No.	BP93111
	Materials	Plunger	Brass 0.75um Au over Ni
		Barrel	Brass 0.5um Au over Ni
		Spring	SUS surface treatment
	Mechanical	Contact force	200g ±20% at 2.10mm working stroke
		Full stroke	2.5mm
		Life test	20,000 cycles
	Electrical	Rated current and voltage	12V DC, 30A
		Contact-resistance	50 milliohms max .The contact is more stable and the conductivity will be better

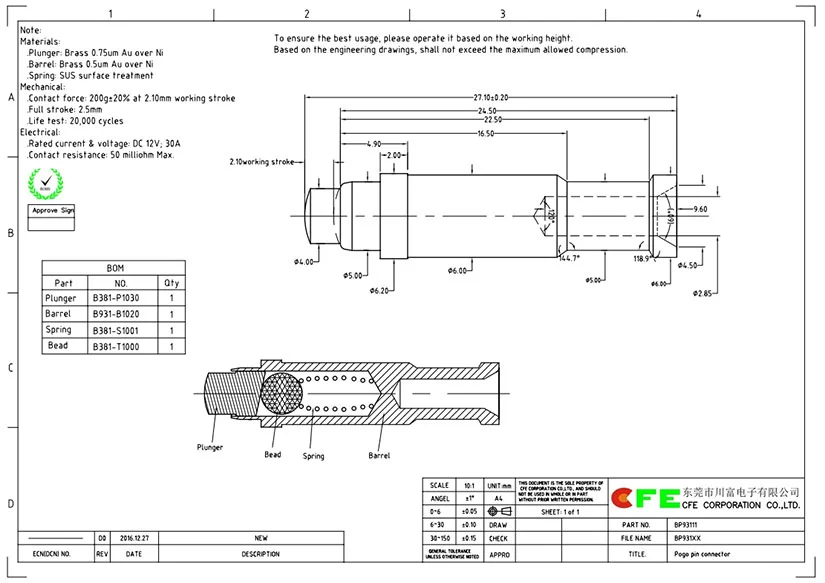

Drawing of High current pogo pins

Customized service

The unit of A, B, C, D, E, F, H is mm

Part NO.	A	B	C	D	E	F	G	H	Stroke(mm)	Force(g)	Current(A)	PDF
BS16711	11.00	7.00	/	4.50	3.40	2.40	11.00	/	4.0	500	15
BS25111	8.60	6.30	0.75	3.20	2.40	1.27	7.90	/	1.1	120	5
BP02911	13.21	9.65	/	/	2.67	2.11	2.29	0.64	2.5	120	5
BP03422	4.45	2.50	0.50	2.80	2.20	1.50	2.00	1.50	1.3	190	5
BP034XX	4.45	2.50	0.50	2.80	2.20	1.50	2.00	1.50	1.3	190	5
BP03811	6.15	4.80	/	/	1.30	0.90	/	0.90	0.7	60	5
BP03812	6.15	4.80	/	/	1.30	0.90	/	0.90	0.7	60	5
BP03815	6.15	4.80	/	/	1.30	0.90	/	0.90	0.7	60	5
BP03816	6.15	4.80	/	/	1.30	0.90	/	0.90	0.7	60	5
BP03821	6.15	4.80	/	/	1.30	0.90	/	0.70	0.7	60	5
BP03822	6.15	4.80	/	/	1.30	0.90	/	0.70	0.7	60	5
BP06611	8.90	5.80	/	4.00	3.00	2.00	1.20	1.50	1.5	160	5
BP06612	8.40	5.80	/	4.00	3.00	2.00	1.20	1.50	1.0	150	5
BP07311	11.00	9.00	/	/	1.50	0.90	4.00	0.60	1.0	80	1.5
BP10911	9.90	8.30	/	/	2.50	1.50	/	1.95	1.3	190	5
BP13101	7.50	4.90	2.00	5.50	4.00	3.00	6.50	4.00	2.1	300	15
BP13112	7.50	4.90	2.00	5.50	4.00	3.00	6.50	4.00	2.1	100	5
BP13141	17.50	14.90	/	/	4.00	3.00	2.00	2.00	2.1	300	15
BP16301	5.90	4.55	/	/	1.30	0.90	1.10	0.70	0.7	60	5
BP17201	6.65	4.80	/	/	1.30	0.90	1.15	0.70	0.7	60	5
BP17202	6.65	4.80	/	/	1.30	0.90	0.75	0.70	0.7	60	5
BP17233	6.85	4.80	/	/	1.30	0.90	1.15	0.70	0.7	60	5
BP18101	16.60	12.30	/	/	4.00	2.70	/	/	1.0	120	8
BP18102	13.55	11.10	/	/	4.00	2.80	/	/	1.0	120	8
BP18201	6.65	4.80	/	/	1.30	0.90	/	0.70	0.7	60	5
BP18202	6.85	4.80	/	/	1.30	0.90	/	0.70	0.7	60	5
BP19301	9.80	8.00	/	/	2.40	1.60	1.60	1.00	1.0	140	3.5
BP27111	4.50	3.30	0.40	2.10	1.50	1.00	2.00	1.50	1.0	70	5
BP27121	19.40	18.00	/	/	1.80	1.00	/	/	1.0	70	5
BP28311	23.00	15.00	1.00	3.00	2.80	2.00	2.00	1.50	1.5	300	13
BP28611	16.70	13.50	/	/	2.70	1.80	6.60	1.60	1.6	300	7.5/12
BP30901	6.65	4.80	/	/	1.30	0.90	/	0.90	0.7	60	5
BP30902	6.85	4.80	/	/	1.30	0.90	/	0.90	0.9	70	5
BP31811	3.30	2.30	/	/	1.50	1.00	/	/	0.8	80	1
BP38111	7.50	4.90	2.00	6.50	5.00	4.00	9.50	5.00	2.1	200	30
BP38311	14.50	10.50	1.30	4.80	3.50	2.50	3.20	1.00	1.5	200	9
BP39011	11.00	7.00	/	5.20	3.96	2.60	4.00	2.00	1.3	190	5
BP39711	5.90	4.55	/	/	1.30	0.90	/	/	0.7	60	5
BF05411	4.00	2.80	0.18	2.03	1.57	1.02	/	/	/	110	12
BF12111	27.80	18.80	2.20	3.00	4.60	3.00	/	/	1.0	220	5
BF44301	8.20	5.30	0.40	1.80	1.48	1.00	/	/	1.0	80	5
BE03921	5.35	4.00	/	/	1.35	0.90	1.05	/	0.8	100	5
BE03922	5.10	4.00	/	/	1.35	0.90	1.05	/	0.8	100	5
BE03931	5.30	4.00	/	/	1.35	0.90	1.05	/	0.8	100	5
BE03932	5.10	4.00	/	/	1.35	0.90	1.05	/	0.8	100	5
BE05011	19.81	17.30	0.76	2.34	2.16	1.68	1.14	/	2.51	170	5
BE06711	7.05	5.25	/	/	1.30	0.90	/	/	0.7	50	5
BE06712	7.35	5.25	/	/	1.30	0.90	/	/	0.9	50	5
BE117XX	8.50	6.00	0.25	1.88	1.57	1.00	2.50	/	2.5	82	7
BE39611	5.45	4.00	/	/	1.35	0.90	/	/	0.80	100	5
BP53411	12.10	7.40	1.70	2.50	2.00	1.30	7.7	2	2.70	100	5
BP46521	7.50	5.30	0.40	1.80	1.50	1.00	1.00	0.50	1.00	70	5
BF65811	7.30	5.80	3.50	6.50	4.30	3.50	/	/	1.50	170	18
BP67511	10.00	7.30	0.40	1.80	1.48	1.00	5.00	0.50	1.00	60	5
BP71611	7.70	4.50	1.00	4.00	2.48	1.70	2.50	2.50	2.10	150	8
BP18103	13.55	11.10	/	/	4.00	2.80	3.00	2.00	1.00	300	8
BP38111	7.50	4.90	2.00	6.50	5.00	4.00	9.50	5.00	2.10	200	30
BP90811	5.50	4.40	/	1.42	1.30	0.85	1.40	0.50	1.00	150	5
BP90821	5.40	4.40	/	1.42	1.30	0.85	1.40	0.50	0.80	120	5
BP92511	5.90	4.10	/	/	1.30	0.80	1.25	0.50	0.90	80	5
BP92521	5.60	4.10	/	/	1.30	0.80	1.25	0.50	0.60	65	5
BP92811	8.00	5.30	0.40	1.80	1.50	1.00	1.75	0.80	1.00	70	5
BP87411	6.50	4.80	/	1.80	1.50	1.00	13.70	0.50	1.10	80	5
BP81311	6.50	4.80	/	1.80	1.50	1.00	0.80	0.60	1.10	80	5Amax
BP88611	11.20	9.60	0.50	2.40	2.00	1.30	/	2.00	1.00	200	4
BP95311	6.80	4.85	/	2.80	2.20	1.50	2.00	1.50	1.30	200	5
BP77031	12.70	2.60	0.50	3.90	2.30	1.20	7.50	2.00	1.80	175	10
BP103101	8.50	6.00	/	/	3.20	2.40	1.75	1.20	1.20	240	5
BP69811	7.65	5.60	/	/	5.00	3.80	0.80	1.00	10.50	80	5
BP101311	9.50	7.30	1.00	1.80	1.48	1.00	1.75	0.50	1.4	120	5
BP89611	6.50	4.80	0.50	1.80	1.50	1.00	1.60	0.60	1.1	80	5
