Description

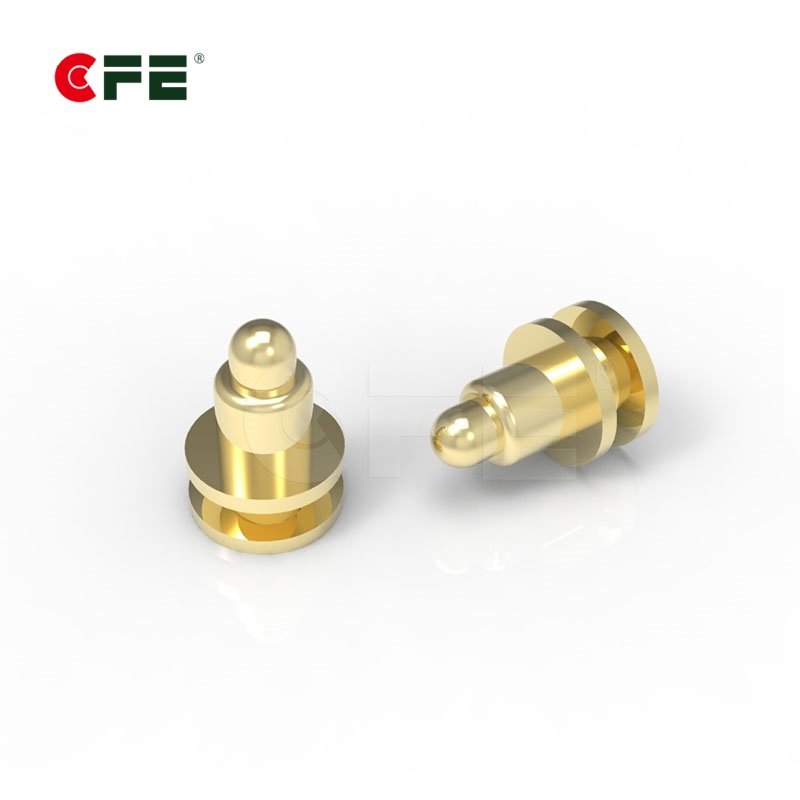

1A smt spring contact pogo pin manufacturer in China. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.
Specification of 1A smt spring contact pogo pin
PDF download
Part No.
BF91901
Materials
Plunger
Brass 0.1250u” Au over Ni
Barrel
Brass 0.50u” Au over Ni
Spring
SUS 304 surface treatment
Mechanical
Contact force
70g±20g at 0.6mm working stroke
Full stroke
0.8mm
Life test
20,000 cycles
Electrical
Rated current and voltage
DC 12V; 1A
Contact-resistance
50milliohm Max

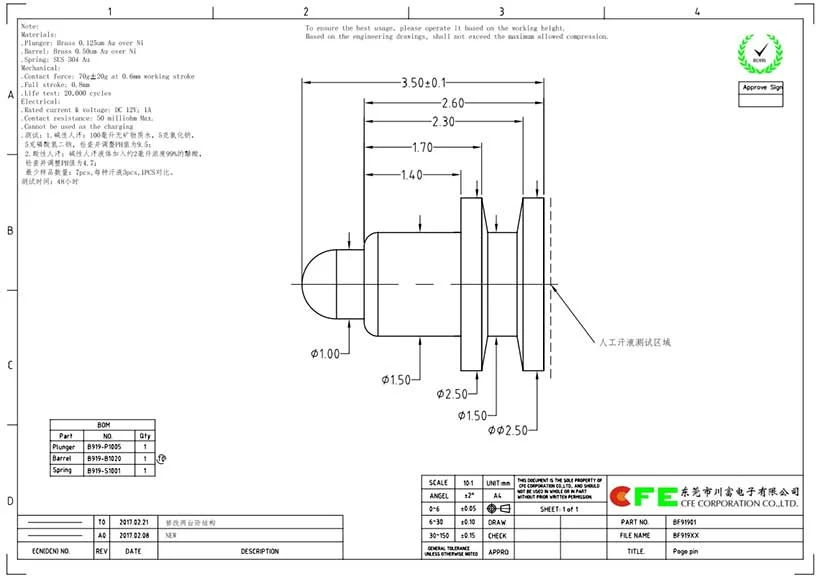

Drawing of 1A smt spring contact pogo pin
To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.
Customized service
The unit of A, B, C, D, E, F is mm
Part NO. A B C D E F Stroke(mm) Force(g) Current(A) PDF
BF00111 4.30 3.30 0.50 1.80 1.50 0.90 1.0 50 1
BF00217 15.20 13.70 0.60 1.63 1.50 0.90 0.9 100 1
BF00218 15.20 13.70 0.63 1.63 1.50 0.90 0.9 100 1
BF00261 16.50 15.00 0.60 1.55 1.45 0.90 0.9 100 1
BF00511 4.00 2.50 0.50 / 1.50 0.90 / 120 1
BF00611 3.00 2.00 0.50 2.00 1.50 0.90 0.7 50 1
BF00811 5.50 4.50 0.50 1.80 1.48 0.90 0.8 120 1
BF01011 4.20 3.20 / / 1.00 0.50 0.8 40 1
BF01211 17.00 14.70 2.00 1.70 2.00 1.40 1.5 130 2
BF01311 9.00 6.50 3.30 1.50 1.60 1.10 80
BF01411 3.50 2.50 0.40 1.82 1.76 1.06 0.5 60 1
BF01811 3.00 2.00 0.40 1.83 1.55 1.05 0.7 110 1
BF01911 4.40 3.40 0.40 1.83 1.55 1.07 0.6 150 1
BF02011 6.00 4.00 0.50 2.00 1.50 0.90 / 80 1
BF02014 6.00 4.00 0.50 2.00 1.50 1.00 1.0 80 1
BF02211 8.00 5.50 0.70 1.80 1.60 1.00 1.5 130 2
BF02811 16.50 13.00 / / 2.00 1.40 1.5 150 1
BF03024 7.00 4.50 / / 2.95 2.30 1.5 180 /
BF03111 9.00 6.50 3.30 1.35 1.45 0.90 1.5 80 /
BF03511 5.40 3.90 0.70 1.80 1.50 1.00 1.0 120 3
BF04312 12.60 11.10 0.90 1.80 1.50 0.90 1.0 60 1
BF04320 20.60 19.10 0.90 1.80 1.50 0.90 1.0 30 1
BF04336 36.60 35.10 0.90 1.80 1.50 0.90 1.0 60 1
BF04511 6.82 5.42 0.60 1.90 1.50 0.90 0.9 100 1
BF04711 5.00 3.60 0.50 1.80 1.50 1.00 / 110 1
BF04811 7.00 5.00 0.50 1.80 1.50 1.00 0.7 50 2
BF04911 2.30 1.60 0.40 1.45 1.35 0.90 / 70 1
BF05211 7.90 5.70 0.60 1.80 1.50 0.90 1.2 60 2
BF05711 5.50 3.05 0.50 2.30 1.50 1.00 0.9 45 1
BF05721 4.50 2.45 0.50 2.30 1.50 1.00 0.5 45 1
BF05811 14.00 9.00 / / 1.50 1.00 / 120 1
BF06311 4.00 2.70 0.40 2.50 1.50 0.90 1.0 80 1
BF06911 7.30 5.25 0.50 1.36 1.30 0.80 0.8 95 2
BF08211 2.90 1.70 0.40 2.00 1.50 0.90 0.9 65-95 1
BF08311 2.30 1.50 0.30 1.40 1.25 0.80 / 30 1
BF08312 2.30 1.50 0.30 1.40 1.25 0.80 / 30 1
BF08511 3.60 2.30 0.30 2.00 1.25 0.80 / 70 1
BF08811 3.50 2.50 0.30 1.70 1.50 0.90 0.5 45 1
BF09511 4.50 2.45 0.40 2.30 1.50 1.00 / 45 1
BF09611 4.25 3.25 0.50 3.50 2.50 2.00 1.0 300 1
BF09612 4.25 3.25 / 3.50 2.50 2.00 1.0 300 1
BF09711 3.20 2.00 / 2.00 1.25 0.80 / 95 1
BF09811 6.00 4.50 / 1.80 1.35 0.85 0.5 25-45 1
BF09812 6.00 4.50 1.00 1.80 1.35 0.85 1.0 110 1
BF10001 5.00 3.30 1.00 1.80 1.48 1.00 1.0 30 1
BF10411 3.40 2.50 0.40 1.80 1.50 1.00 0.8 110 1
BF10412 3.40 2.50 0.40 1.80 1.50 1.00 0.6 60 1
BF10413 3.40 2.50 0.40 1.80 1.50 1.00 0.8 110 3
BF10511 4.00 3.00 0.40 1.80 1.48 1.00 / 60 3
BF10711 3.70 2.40 0.40 1.80 1.48 1.00 0.7 110 1
BF11611 4.70 4.00 0.25 1.88 1.57 1.00 0.7 88 3
BF12711 4.30 3.00 / / 1.50 0.90 0.8 100 2
BF12821 9.50 7.00 1.50 2.00 1.48 0.90 1.0 125 2
BF13601 9.40 8.30 / 1.80 1.48 1.00 1.0 70 3
BF13611 9.90 8.30 / 1.80 1.48 1.00 1.0 70 3
BF13621 10.40 8.30 / 1.80 1.48 1.00 1.0 70 3
BF14611 6.50 3.50 0.40 2.00 1.50 1.00 2.0 60 1
BF15001 7.00 4.50 2.50 3.50 2.90 2.30 1.5 180 /
BF15311 8.30 5.20 0.80 3.50 2.30 1.10 0.7 70 3
BF15711 10.50 4.50 / / 1.50 0.90 1.0 100 1
BF15811 5.00 3.60 0.40 1.80 1.48 1.00 1.0 120 1
BF16511 2.50 1.90 0.70 1.80 1.60 1.00 1.9 50 0.5
BF16611 4.50 3.20 0.70 1.80 1.60 1.00 1.3 90 0.5
BF18311 2.10 1.45 0.55 1.30 1.05 0.70 1.7 6 1
BF19101 5.50 4.00 0.80 2.00 1.48 0.90 0.7 80 2
BF19401 2.54 1.90 0.40 1.80 1.48 1.00 0.5 50 1
BF19701 9.50 7.00 / / 2.95 2.30 1.5 180 1
BF19801-02350H1A 7.50 5.30 1.80 1.48 1.00 1.0 70 1
BF19901 11.00 8.00 0.40 1.80 1.50 1.00 1.0 90 2.5
BF20401 4.50 2.70 0.40 1.80 1.80 1.07 1.0 60 1
BF21801 6.40 4.60 1.00 2.50 2.00 1.50 1.0 150 4
BF25011 4.30 2.60 / 3.10 2.55 1.90 0.9 250 1
BF30611 7.10 4.50 / / 3.50 2.70 2.6 200 /
BF31511 11.50 8.80 0.60 5.00 2.30 1.50 1.75 235 3
BF31911 23.60 15.70 / / 2.00 1.40 4.0 250
BF36211 2.80 2.00 / 2.00 1.50 0.90 0.8 60 0.1
BF36621 4.00 2.50 0.40 2.00 1.50 1.00 1.0 40 1
BF36811 2.50 1.60 0.30 1.40 1.25 0.80 0.5 55 0.5
BF37111-10254H0A 9.00 7.30 4.25 / / 1.00 0.7 60 2
BF37211-06254B0A 3.80 / 0.40 2.00 / 1.00 0.8 25 1
BF37311-08340H0A 9.00 / / / 1.48 0.90 1.8 75 1
BF38411-04254F0A 11.00 7.30 4.00 5.08 / 1.00 1 70 3
BF38511 2.40 1.45 0.30 1.80 1.48 0.90 1.8 120 1.5
BF38511-0325001A 2.30 1.45 0.30 1.80 1.53 0.90 1.8 120 1.5
BF38522 2.50 1.70 0.40 1.80 1.48 1.00 0.6 100 1.0
BF39311-12254H0A 6.50 3.00 0.40 1.80 1.50 1.00 1.8 60 1
BF39511 3.30 2.70 0.50 2.20 1.80 1.00 0.5 60 1
BF40511 5.00 3.50 0.80 1.60 1.20 0.70 1.1 90 1
BF40611-06254S0A 7.62 5.08 2.54 1.27 / / 0.62 50 1
BF40711-01000H1A 3.90 3.00 2.60 1.80 1.50 1.00 0.8 40 1
BF40911 3.50 2.50 / 1.80 1.48 1.00 0.5 60 1
BF42011-02762E0A 7.30 4.00 0.4 / 2.54 1.00 1 70 1
BF42411 11.50 2.00 0.50 4.00 3.50 3.00 0.8 100 /
BF44511 5.00 3.70 0.40 2.00 1.50 0.90 1.0 50 1.0
BF44711-A03113A 8.00 5.30 / / / 1.00 1 30 1
BF44911-05250H0A 7.50 0.40 1.80 / 1.00 / 1 70 3
BF45111 2.00 1.55 0.40 2.10 1.78 1.20 0.4 70 1.0
BF46911 4.00 2.60 0.40 1.80 1.48 1.00 0.8 100 1
BF47011 3.90 2.70 / / 1.60 1.00 0.6 50 1
BF47111 3.10 2.20 / 1.80 1.30 0.90 0.6 70 1
BF47711 4.90 3.50 / 2.00 1.48 1.00 0.8 80 1
BF47911 9.50 8.00 0.40 1.90 1.48 1.00 0.8 60 1
BF12891 9.50 7.00 1.70 1.80 1.48 1.00 1.0 125 2
BF49811 4.80 3.50 0.50 1.80 1.50 0.90 0.0 40 2
BF57811 5.50 4.00 0.50 2.00 1.50 1.00 1.00 100.00 3
BF56111 5.30 4.00 / / 3.00 2.20 1.00 100.00 1
BF60511 5.00 3.30 0.40 1.80 1.48 1.00 0.6 30 1
MF801-11GG 1.30 1.00 0.40 1.50 1.28 0.80 0.2 20 1
MF802-11GG 1.50 1.30 0.40 1.50 1.28 0.80 0.2 20 1
MF802-21GG 1.70 1.30 0.40 1.50 1.28 0.80 0.2 20 1
MF803-11GG 1.90 1.50 0.40 1.50 1.28 0.80 0.4 70 1
MF803-21GG 2.10 1.50 0.40 1.50 1.28 0.80 0.4 70 1
MF803-31GG 2.30 1.50 0.40 1.50 1.28 0.80 0.4 70 1
MF804-11GG 2.50 1.70 0.40 1.50 1.28 0.80 0.6 70 1
MF804-21GG 2.70 1.70 0.40 1.50 1.28 0.80 0.6 70 1
MF805-11GG 2.90 2.00 0.40 1.50 1.28 0.80 0.6 80 1
MF806-11GG 3.10 2.30 0.40 1.50 1.28 0.80 0.8 80 1
MF806-21GG 3.30 2.3 0.40 1.50 1.28 0.80 0.8 80 1
MF807-11GG 3.50 2.60 0.40 1.50 1.28 0.80 0.8 80 1
MF807-21GG 3.70 2.60 0.40 1.50 1.28 0.80 0.8 80 1
MF807-31GG 4.00 2.60 0.40 1.50 1.28 0.80 0.8 80 1
MF808-11GG 4.20 3.00 0.40 1.50 1.28 0.80 1.0 80 1
MF808-21GG 4.40 3.00 0.40 1.50 1.28 0.80 1.0 80 1
MF809-11GG 4.50 3.30 0.40 1.50 1.28 0.80 1.0 70 1
MF809-21GG 5.00 3.30 0.40 1.50 1.28 0.80 1.0 70 1
MF810-11GG 5.50 4.30 0.40 1.50 1.28 1.00 1.0 70 1
MF810-21GG 6.00 4.30 0.40 1.50 1.28 1.00 1.0 70 1
MF811-11GG 6.50 5.30 0.40 1.50 1.28 0.80 1.0 70 1
MF811-21GG 7.00 5.30 0.40 1.50 1.28 0.80 1.0 70 1
MF811-31GG 7.50 5.30 0.40 1.50 1.28 0.80 1.0 70 1
MF811-41GG 8.00 5.30 0.40 1.50 1.25 0.80 1.0 70 1
BF65111 8.20 6.00 0.50 2.30 2.00 1.50 7.2 120 2
BF65511 3.50 2.70 0.50 2.00 1.50 0.90 0.5 70 1
BF65711 2.00 1.00 / / 1.22 0.80 0.7 60 1
BF69011 2.95 1.85 0.30 2.00 1.25 0.80 2.5 40 1
BF72411 2.70 1.70 0.40 1.70 1.38 0.90 0.6 100 1
BF76611 3.25 2.00 0.30 1.80 1.48 0.90 0.7 50 1
BF68611 7.25 6.15 0.67 1.80 1.48 1.00 1.0 70 3
BF67111 6.30 4.90 0.30 1.30 1.08 0.65 1.3 60 1
BF67121 6.00 4.90 0.30 1.30 1.08 0.65 1.0 50 1
BF80211 5.00 3.50 0.30 1.00 0.90 0.50 0.5 40 1
BF83911 11.50 10.00 0.40 1.80 1.48 1.00 0.7 85 3
BF60721 8.10 6.80 0.40 1.20 1.02 0.60 1.0 40 1
BF60731 8.10 6.80 0.40 1.20 1.02 0.60 1.0 30 1
BF86211 3.30 2.50 / / 1.00 0.45 0.6 60 1
BF89711 2.90 2.20 0.40 1.80 1.48 1.00 0.9 80 1
BF89721 3.70 2.70 0.40 1.80 1.48 1.00 0.6 80 1
BF82111 6.00 4.30 0.40 1.80 1.48 1.00 1.0 50 2
BF91901 3.50 2.60 0.30 2.50 1.50 1.00 0.6 70 1
BF16611 4.50 3.20 0.70 1.80 1.60 1.00 3.50 75 0.5
BF98111 4.80 3.30 0.60 1.45 1.20 0.70 4.00 60 1
BF95711 11.20 8.20 1.00 4.50 3.20 2.00 1.00 90 3
BF25011 2.60 4.20 / 3.10 2.55 1.90 3.30 250 1
BF80211 3.50 5.00 0.80 1.00 0.90 0.50 0.50 40 1
BF76811 6.05 3.40 2.65 8.20 7.00 / 2.50 30
BF79411 8.00 6.00 0.50 2.50 2.00 1.20 1.50 120 3
BF106301 3.50 2.60 0.40 1.80 1.48 1.00 0.80 100 1
