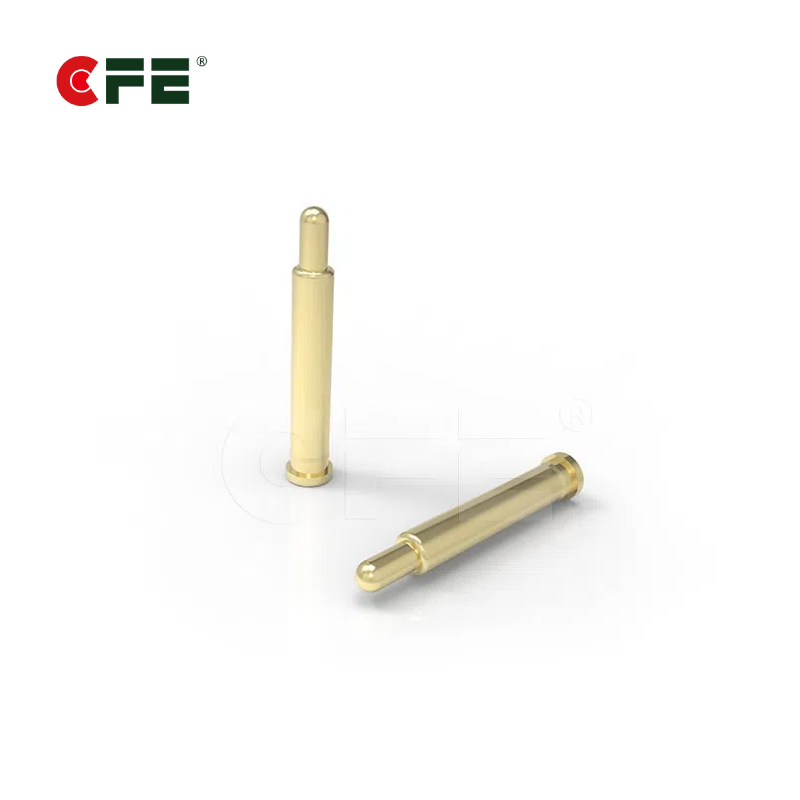

[BF13651] 5A high current smt type pogo pin spring contact

Description

5A high current smt type pogo pin spring contact manufacturer in China. Flat SMT pogo pin type with stable quality. The bottom of barrel is designed as flat shape, easy to be mounted on PCB. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

Advantages of our factory

• World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
• World’s second manufacturer developed 1.27 pitch pogo pin connector
• Asia’s first manufacturer achieved compression mechanical 1 million life times
• Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
• China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Specification of 5A high current smt type pogo pin spring contact

PDF download	Part No.	BF13651
	Materials	Plunger	Brass 0.5um Au over 1.25um Ni
		Barrel	Brass 0.5um Au over 1.25um Ni
		Spring	SUS 304 surface treatment
	Mechanical	Contact force	90g±20g at 1.0mm working stroke
		Full stroke	1.8mm
		Life test	20,000 cycles
	Electrical	Rated current and voltage	DC 12V; 5A
		Contact-resistance	50milliohm Max

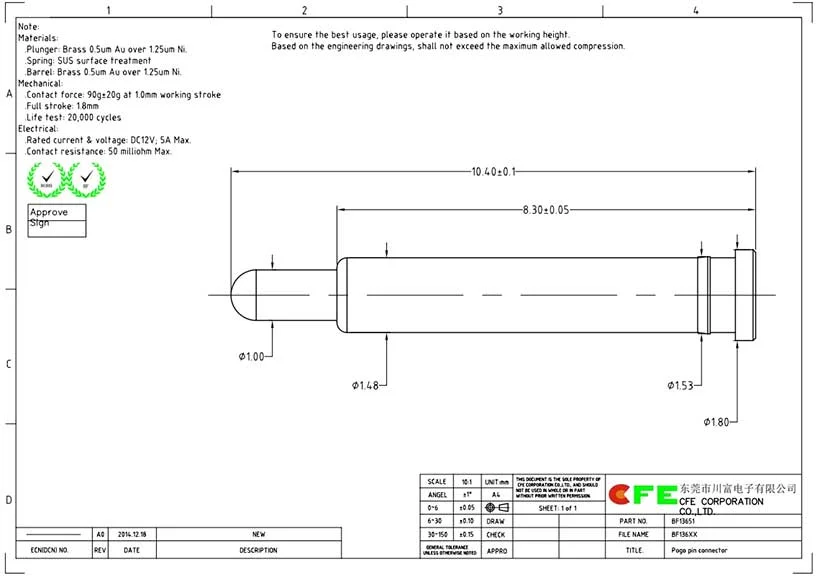

Drawing of 5A high current smt type pogo pin spring contact

To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.

Customized service

The unit of  A, B, C, D, E, F is mm

Part NO.	A	B	C	D	E	F	Stroke(mm)	Force(g)	Current(A)	PDF
BF00111	4.30	3.30	0.50	1.80	1.50	0.90	1.0	50	1
BF00217	15.20	13.70	0.60	1.63	1.50	0.90	0.9	100	1
BF00218	15.20	13.70	0.63	1.63	1.50	0.90	0.9	100	1
BF00261	16.50	15.00	0.60	1.55	1.45	0.90	0.9	100	1
BF00511	4.00	2.50	0.50	/	1.50	0.90	/	120	1
BF00611	3.00	2.00	0.50	2.00	1.50	0.90	0.7	50	1
BF00811	5.50	4.50	0.50	1.80	1.48	0.90	0.8	120	1
BF01011	4.20	3.20	/	/	1.00	0.50	0.8	40	1
BF01211	17.00	14.70	2.00	1.70	2.00	1.40	1.5	130	2
BF01311	9.00	6.50	3.30	1.50	1.60	1.10		80
BF01411	3.50	2.50	0.40	1.82	1.76	1.06	0.5	60	1
BF01811	3.00	2.00	0.40	1.83	1.55	1.05	0.7	110	1
BF01911	4.40	3.40	0.40	1.83	1.55	1.07	0.6	150	1
BF02011	6.00	4.00	0.50	2.00	1.50	0.90	/	80	1
BF02014	6.00	4.00	0.50	2.00	1.50	1.00	1.0	80	1
BF02211	8.00	5.50	0.70	1.80	1.60	1.00	1.5	130	2
BF02811	16.50	13.00	/	/	2.00	1.40	1.5	150	1
BF03024	7.00	4.50	/	/	2.95	2.30	1.5	180	/
BF03111	9.00	6.50	3.30	1.35	1.45	0.90	1.5	80	/
BF03511	5.40	3.90	0.70	1.80	1.50	1.00	1.0	120	3
BF04312	12.60	11.10	0.90	1.80	1.50	0.90	1.0	60	1
BF04320	20.60	19.10	0.90	1.80	1.50	0.90	1.0	30	1
BF04336	36.60	35.10	0.90	1.80	1.50	0.90	1.0	60	1
BF04511	6.82	5.42	0.60	1.90	1.50	0.90	0.9	100	1
BF04711	5.00	3.60	0.50	1.80	1.50	1.00	/	110	1
BF04811	7.00	5.00	0.50	1.80	1.50	1.00	0.7	50	2
BF04911	2.30	1.60	0.40	1.45	1.35	0.90	/	70	1
BF05211	7.90	5.70	0.60	1.80	1.50	0.90	1.2	60	2
BF05711	5.50	3.05	0.50	2.30	1.50	1.00	0.9	45	1
BF05721	4.50	2.45	0.50	2.30	1.50	1.00	0.5	45	1
BF05811	14.00	9.00	/	/	1.50	1.00	/	120	1
BF06311	4.00	2.70	0.40	2.50	1.50	0.90	1.0	80	1
BF06911	7.30	5.25	0.50	1.36	1.30	0.80	0.8	95	2
BF08211	2.90	1.70	0.40	2.00	1.50	0.90	0.9	65-95	1
BF08311	2.30	1.50	0.30	1.40	1.25	0.80	/	30	1
BF08312	2.30	1.50	0.30	1.40	1.25	0.80	/	30	1
BF08511	3.60	2.30	0.30	2.00	1.25	0.80	/	70	1
BF08811	3.50	2.50	0.30	1.70	1.50	0.90	0.5	45	1
BF09511	4.50	2.45	0.40	2.30	1.50	1.00	/	45	1
BF09611	4.25	3.25	0.50	3.50	2.50	2.00	1.0	300	1
BF09612	4.25	3.25	/	3.50	2.50	2.00	1.0	300	1
BF09711	3.20	2.00	/	2.00	1.25	0.80	/	95	1
BF09811	6.00	4.50	/	1.80	1.35	0.85	0.5	25-45	1
BF09812	6.00	4.50	1.00	1.80	1.35	0.85	1.0	110	1
BF10001	5.00	3.30	1.00	1.80	1.48	1.00	1.0	30	1
BF10411	3.40	2.50	0.40	1.80	1.50	1.00	0.8	110	1
BF10412	3.40	2.50	0.40	1.80	1.50	1.00	0.6	60	1
BF10413	3.40	2.50	0.40	1.80	1.50	1.00	0.8	110	3
BF10511	4.00	3.00	0.40	1.80	1.48	1.00	/	60	3
BF10711	3.70	2.40	0.40	1.80	1.48	1.00	0.7	110	1
BF11611	4.70	4.00	0.25	1.88	1.57	1.00	0.7	88	3
BF12711	4.30	3.00	/	/	1.50	0.90	0.8	100	2
BF12821	9.50	7.00	1.50	2.00	1.48	0.90	1.0	125	2
BF13601	9.40	8.30	/	1.80	1.48	1.00	1.0	70	3
BF13611	9.90	8.30	/	1.80	1.48	1.00	1.0	70	3
BF13621	10.40	8.30	/	1.80	1.48	1.00	1.0	70	3
BF14611	6.50	3.50	0.40	2.00	1.50	1.00	2.0	60	1
BF15001	7.00	4.50	2.50	3.50	2.90	2.30	1.5	180	/
BF15311	8.30	5.20	0.80	3.50	2.30	1.10	0.7	70	3
BF15711	10.50	4.50	/	/	1.50	0.90	1.0	100	1
BF15811	5.00	3.60	0.40	1.80	1.48	1.00	1.0	120	1
BF16511	2.50	1.90	0.70	1.80	1.60	1.00	1.9	50	0.5
BF16611	4.50	3.20	0.70	1.80	1.60	1.00	1.3	90	0.5
BF18311	2.10	1.45	0.55	1.30	1.05	0.70	1.7	6	1
BF19101	5.50	4.00	0.80	2.00	1.48	0.90	0.7	80	2
BF19401	2.54	1.90	0.40	1.80	1.48	1.00	0.5	50	1
BF19701	9.50	7.00	/	/	2.95	2.30	1.5	180	1
BF19801-02350H1A	7.50	5.30		1.80	1.48	1.00	1.0	70	1
BF19901	11.00	8.00	0.40	1.80	1.50	1.00	1.0	90	2.5
BF20401	4.50	2.70	0.40	1.80	1.80	1.07	1.0	60	1
BF21801	6.40	4.60	1.00	2.50	2.00	1.50	1.0	150	4
BF25011	4.30	2.60	/	3.10	2.55	1.90	0.9	250	1
BF30611	7.10	4.50	/	/	3.50	2.70	2.6	200	/
BF31511	11.50	8.80	0.60	5.00	2.30	1.50	1.75	235	3
BF31911	23.60	15.70	/	/	2.00	1.40	4.0	250
BF36211	2.80	2.00	/	2.00	1.50	0.90	0.8	60	0.1
BF36621	4.00	2.50	0.40	2.00	1.50	1.00	1.0	40	1
BF36811	2.50	1.60	0.30	1.40	1.25	0.80	0.5	55	0.5
BF37111-10254H0A	9.00	7.30	4.25	/	/	1.00	0.7	60	2
BF37211-06254B0A	3.80	/	0.40	2.00	/	1.00	0.8	25	1
BF37311-08340H0A	9.00	/	/	/	1.48	0.90	1.8	75	1
BF38411-04254F0A	11.00	7.30	4.00	5.08	/	1.00	1	70	3
BF38511	2.40	1.45	0.30	1.80	1.48	0.90	1.8	120	1.5
BF38511-0325001A	2.30	1.45	0.30	1.80	1.53	0.90	1.8	120	1.5
BF38522	2.50	1.70	0.40	1.80	1.48	1.00	0.6	100	1.0
BF39311-12254H0A	6.50	3.00	0.40	1.80	1.50	1.00	1.8	60	1
BF39511	3.30	2.70	0.50	2.20	1.80	1.00	0.5	60	1
BF40511	5.00	3.50	0.80	1.60	1.20	0.70	1.1	90	1
BF40611-06254S0A	7.62	5.08	2.54	1.27	/	/	0.62	50	1
BF40711-01000H1A	3.90	3.00	2.60	1.80	1.50	1.00	0.8	40	1
BF40911	3.50	2.50	/	1.80	1.48	1.00	0.5	60	1
BF42011-02762E0A	7.30	4.00	0.4	/	2.54	1.00	1	70	1
BF42411	11.50	2.00	0.50	4.00	3.50	3.00	0.8	100	/
BF44511	5.00	3.70	0.40	2.00	1.50	0.90	1.0	50	1.0
BF44711-A03113A	8.00	5.30	/	/	/	1.00	1	30	1
BF44911-05250H0A	7.50	0.40	1.80	/	1.00	/	1	70	3
BF45111	2.00	1.55	0.40	2.10	1.78	1.20	0.4	70	1.0
BF46911	4.00	2.60	0.40	1.80	1.48	1.00	0.8	100	1
BF47011	3.90	2.70	/	/	1.60	1.00	0.6	50	1
BF47111	3.10	2.20	/	1.80	1.30	0.90	0.6	70	1
BF47711	4.90	3.50	/	2.00	1.48	1.00	0.8	80	1
BF47911	9.50	8.00	0.40	1.90	1.48	1.00	0.8	60	1
BF12891	9.50	7.00	1.70	1.80	1.48	1.00	1.0	125	2
BF49811	4.80	3.50	0.50	1.80	1.50	0.90	0.0	40	2
BF57811	5.50	4.00	0.50	2.00	1.50	1.00	1.00	100.00	3
BF56111	5.30	4.00	/	/	3.00	2.20	1.00	100.00	1
BF60511	5.00	3.30	0.40	1.80	1.48	1.00	0.6	30	1
MF801-11GG	1.30	1.00	0.40	1.50	1.28	0.80	0.2	20	1
MF802-11GG	1.50	1.30	0.40	1.50	1.28	0.80	0.2	20	1
MF802-21GG	1.70	1.30	0.40	1.50	1.28	0.80	0.2	20	1
MF803-11GG	1.90	1.50	0.40	1.50	1.28	0.80	0.4	70	1
MF803-21GG	2.10	1.50	0.40	1.50	1.28	0.80	0.4	70	1
MF803-31GG	2.30	1.50	0.40	1.50	1.28	0.80	0.4	70	1
MF804-11GG	2.50	1.70	0.40	1.50	1.28	0.80	0.6	70	1
MF804-21GG	2.70	1.70	0.40	1.50	1.28	0.80	0.6	70	1
MF805-11GG	2.90	2.00	0.40	1.50	1.28	0.80	0.6	80	1
MF806-11GG	3.10	2.30	0.40	1.50	1.28	0.80	0.8	80	1
MF806-21GG	3.30	2.3	0.40	1.50	1.28	0.80	0.8	80	1
MF807-11GG	3.50	2.60	0.40	1.50	1.28	0.80	0.8	80	1
MF807-21GG	3.70	2.60	0.40	1.50	1.28	0.80	0.8	80	1
MF807-31GG	4.00	2.60	0.40	1.50	1.28	0.80	0.8	80	1
MF808-11GG	4.20	3.00	0.40	1.50	1.28	0.80	1.0	80	1
MF808-21GG	4.40	3.00	0.40	1.50	1.28	0.80	1.0	80	1
MF809-11GG	4.50	3.30	0.40	1.50	1.28	0.80	1.0	70	1
MF809-21GG	5.00	3.30	0.40	1.50	1.28	0.80	1.0	70	1
MF810-11GG	5.50	4.30	0.40	1.50	1.28	1.00	1.0	70	1
MF810-21GG	6.00	4.30	0.40	1.50	1.28	1.00	1.0	70	1
MF811-11GG	6.50	5.30	0.40	1.50	1.28	0.80	1.0	70	1
MF811-21GG	7.00	5.30	0.40	1.50	1.28	0.80	1.0	70	1
MF811-31GG	7.50	5.30	0.40	1.50	1.28	0.80	1.0	70	1
MF811-41GG	8.00	5.30	0.40	1.50	1.25	0.80	1.0	70	1
BF65111	8.20	6.00	0.50	2.30	2.00	1.50	7.2	120	2
BF65511	3.50	2.70	0.50	2.00	1.50	0.90	0.5	70	1
BF65711	2.00	1.00	/	/	1.22	0.80	0.7	60	1
BF69011	2.95	1.85	0.30	2.00	1.25	0.80	2.5	40	1
BF72411	2.70	1.70	0.40	1.70	1.38	0.90	0.6	100	1
BF76611	3.25	2.00	0.30	1.80	1.48	0.90	0.7	50	1
BF68611	7.25	6.15	0.67	1.80	1.48	1.00	1.0	70	3
BF67111	6.30	4.90	0.30	1.30	1.08	0.65	1.3	60	1
BF67121	6.00	4.90	0.30	1.30	1.08	0.65	1.0	50	1
BF80211	5.00	3.50	0.30	1.00	0.90	0.50	0.5	40	1
BF83911	11.50	10.00	0.40	1.80	1.48	1.00	0.7	85	3
BF60721	8.10	6.80	0.40	1.20	1.02	0.60	1.0	40	1
BF60731	8.10	6.80	0.40	1.20	1.02	0.60	1.0	30	1
BF86211	3.30	2.50	/	/	1.00	0.45	0.6	60	1
BF89711	2.90	2.20	0.40	1.80	1.48	1.00	0.9	80	1
BF89721	3.70	2.70	0.40	1.80	1.48	1.00	0.6	80	1
BF82111	6.00	4.30	0.40	1.80	1.48	1.00	1.0	50	2
BF91901	3.50	2.60	0.30	2.50	1.50	1.00	0.6	70	1
BF16611	4.50	3.20	0.70	1.80	1.60	1.00	3.50	75	0.5
BF98111	4.80	3.30	0.60	1.45	1.20	0.70	4.00	60	1
BF95711	11.20	8.20	1.00	4.50	3.20	2.00	1.00	90	3
BF25011	2.60	4.20	/	3.10	2.55	1.90	3.30	250	1
BF80211	3.50	5.00	0.80	1.00	0.90	0.50	0.50	40	1
BF76811	6.05	3.40	2.65	8.20	7.00	/	2.50	30
BF79411	8.00	6.00	0.50	2.50	2.00	1.20	1.50	120	3
BF106301	3.50	2.60	0.40	1.80	1.48	1.00	0.80	100	1

Learn more about How to order special pogo pin, If you have special requirements please contact us

You may like our customized pogo pin connector

Application of 1A smt spring contact pogo pin

Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

• Consumer electronics products/PCB board
• Digital camera/Medical products/ Printer cartridges
• Golf handle/ Electric vehicles/ Telephony applications
• Cardiac defibrillator/Car charging /Air purifier
• LED flat luminaries/LED flash light/Tablet/Laptop/PC
• Power bank/ Digital product/ Small household electrical application
• Charging products/Signal transmission products etc
