Description
2a through hole spring pin manufacturers. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge,keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.
Pogo Pin Connector Application
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
Consumer electronics products/PCB board
Digital camera/Medical products/ Printer cartridges
Golf handle/ Electric vehicles/ Telephony applications
Cardiac defibrillator/Car charging /Air purifier
LED flat luminaries/LED flash light/Tablet/Laptop/PC
Power bank/ Digital product/ Small household electrical application
Charging products/Signal transmission products etc

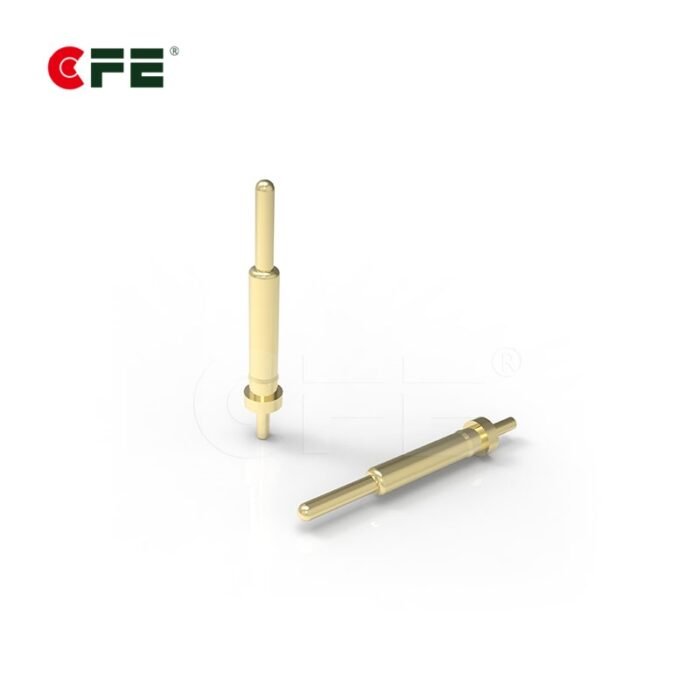

Specification of 2a through hole spring pin manufacturers
PDF download
Part No.
BP57011
Materials
Plunger
Brass 0.25um Au over Ni
Barrel
Brass 0.25um Au over Ni
Spring
SUS 304 surface treatment
Mechanical
Contact force
70g±20g at 1.0mm working stroke
Full stroke
1.4mm
Life test
20,000 cycles
Electrical
Rated current and voltage
DC 12V; 2A
Contact-resistance
50milliohm Max

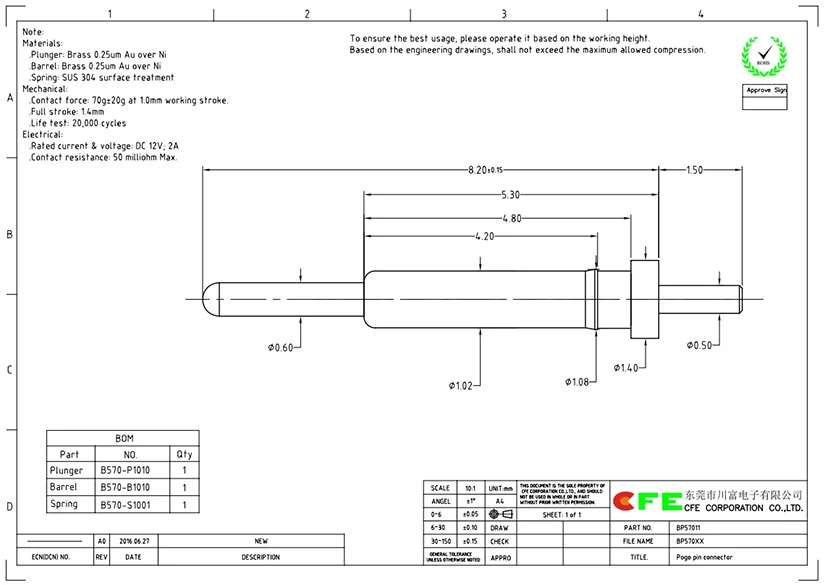

Drawing of 2a through hole spring pin manufacturers
To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.
Customized service
The unit of A, B, C, D, E, F, G, H and Stroke is mm
Part NO. A B C D E F G H Stroke Force(g) Current(A) PDF
BP00312 6.80 4.80 0.80 4.50 3.00 2.00 6.20 0.70 1.5 200 2
BP00411 9.15 6.00 0.50 2.00 1.46 1.00 1.30 0.50 / 110 2
BP00911 5.86 4.46 1.13 1.15 1.00 0.64 1.82 0.68 1.0 34 1
BP01111 42.40 34.80 7.60 3.50 6.00 3.50 / / 5.5 200 /
BP01512 7.10 2.50 0.70 4.00 2.95 1.20 3.50 2.00 / / /
BP01513 7.10 3.20 0.80 3.80 3.75 2.00 3.50 2.80 / 200 1
BP01611 9.10 5.70 / / 2.80 1.80 / 2.00 3.5 10~20 1
BP02311 / 2.70 0.40 1.83 1.50 1.07 / / 0.7 60 1
BP02401
3.70 2.10 0.90 3.90 2.50 2.00 1.10 2.50 1.0 50 1
BP02402
3.70 2.10 0.90 3.90 2.50 2.00 1.10 2.50 1.0 90 1
BP02411
3.70 2.10 0.90 3.90 2.50 2.00 1.10 2.50 1.0 200 1
BP02511
6.05 4.05 0.50 2.50 1.60 0.90 2.30 1.50 1.4 110 3
BP02611-0525001R 6.40 5.00 / / 1.50 1.07 1.75 0.42 1.4 60 0.05
BP02711
7.35 5.55 2.85 1.50 1.30 0.85 1.50 0.70 0.8 80 1
BP02912 13.21 9.65 / / 2.67 2.11 2.29 0.64 1.19 120 2
BP02921 14.50 9.65 / / 2.67 2.11 2.30 0.64 2.5 120 2
BP03211 2.40 1.50 / / 1.48 1.00 / 0.78 0.2 50 1
BP03311 3.50 2.50 0.50 2.00 1.46 0.90 5.00 0.90 1.0 10 1
BP03312 3.50 2.50 0.50 2.00 1.46 0.90 6.00 0.90 1.0 100 1
BP03412 4.45 2.50 0.50 2.80 2.20 1.50 2.00 1.50 1.3 190 2
BP03413 4.45 2.50 0.50 2.80 2.20 1.50 2.00 1.50 1.3 190 2
BP03433 4.90 2.50 0.50 2.80 2.20 1.50 2.00 1.50 1.3 190 2
BP03711 8.60 5.60 0.50 2.00 1.46 1.00 1.30 0.50 / 120 1
BP03805 6.65 4.80 / / 0.75 0.42 / 0.40 0.7 35 15M
BP03806
6.65 4.80 / / 0.75 0.42 / 0.40 0.7 35 15M
BP04011-0100001A 3.50 2.00 0.40 1.80 1.50 1.00 / / 1.0 80 1
BP04011 3.50 2.00 0.40 1.80 1.50 1.00 0.60 0.50 1.0 35 31811
BP04112 7.40 5.30 / / 1.30 0.90 / / 1.2 78 1
BP04211-0100001R 3.70 2.40 0.40 1.80 1.48 1.00 / 0.70 0.6 50 1
BP04211 3.70 2.40 0.40 1.80 1.48 1.00 / 0.70 0.6 50 1
BP04632 3.55 2.65 0.60 1.90 1.50 0.90 / 1.00 0.6 90 1
BP06011 14.60 12.00 / 1.80 1.58 1.10 2.60 0.60 1.5 100 3
BP06022 14.60 12.00 / 1.80 1.58 1.10 2.60 0.60 1.5 100 3
BP06023 14.90 12.00 / 1.80 1.58 1.10 2.60 0.60 1.5 70 3
BP06411 8.00 6.20 / 1.80 1.50 1.10 1.50 0.60 1.0 120 1
BP06511 16.00 14.00 0.40 1.80 1.50 1.10 1.50 0.60 1.5 130 1
BP07111 5.80 4.00 / / 1.50 0.90 3.00 0.60 / 120 1
BP07212 4.60 3.80 / / 0.90 0.45 2.00 0.56 0.6 60 1
BP07213 6.30 5.00 / / 0.90 0.50 0.50 0.50 0.6 60 1
BP07611 7.50 5.60 1.10 1.54 1.25 0.85 1.50 0.70 1.5 120 1
BP07811 9.00 6.75 1.00 5.00 3.50 2.50 1.50 2.00 1.5 120 1
BP07911 7.00 3.00 1.00 0.40 0.20 1.50 12.00 2.00 2.0 100 3
BP08011 17.10 11.00 / / 3.00 2.50 1.60 1.00 1.0 220 2.5
BP08611 9.80 7.30 2.50 2.50 1.80 1.30 2.50 1.02 / 85 4.5
BP08751 3.60 2.40 0.30 2.10 1.50 0.90 1.40 0.80 0.60 40 4
BP08716 3.10 2.40 0.30 2.10 1.50 0.90 1.40 0.80 0.60 40 4
BP08723 3.90 2.70 0.30 2.10 1.50 0.90 1.10 0.80 0.6 40 4
BP08724 3.40 2.70 0.30 2.10 1.50 0.90 0.80 1.10 0.6 40 4
BP08911 10.20 2.40 0.50 1.80 1.50 1.00 1.10 1.00 / 110 1
BP09011 5.50 3.00 / 4.00 2.00 1.20 / 2.00 2.0 120 1
BP09211 6.00 4.60 / / 1.80 1.00 1.00 0.70 1.0 100 1
BP09411 10.20 7.00 3.70 2.90 2.50 1.80 / 1.00 3.0 120 1
BP09412 10.20 7.00 3.70 2.90 2.50 1.80 / 1.00 3.0 120 1
BP09911 5.50 4.50 / / 2.00 1.00 2.00 0.80 0.5 100 1
BP10211 4.30 3.25 0.30 2.30 1.48 1.00 1.00 1.00 0.7 100 1
BP10311 4.20 2.80 0.50 1.40 1.30 0.80 0.80 0.80 0.6 140 1
BP10611 4.30 3.70 0.40 2.85 2.80 / 1.00 0.80 0.6 50 1
BP10622 6.65 5.80 / / 3.20 / 1.00 0.80 0.8 50 1
BP10811 7.10 5.10 0.50 1.80 1.48 1.00 / / / 120 1
BP11111 7.50 5.85 0.50 2.00 1.70 1.00 1.50 1.00 1.0 80 3
BP11211 6.25 4.60 0.40 1.50 1.20 0.70 / 0.80 1.0 60 2
BP11311-07254A0A 9.00 6.00 / / 1.50 1.00 / 0.60 1.0 90 1
BP11511 5.10 3.60 0.50 1.80 1.50 1.00 0.60 0.70 1.5 90 1
BP11513 5.40 3.60 0.50 1.80 1.50 1.00 0.60 0.70 1.5 70 1
BP11811-08127H0A 5.50 4.60 / / / 0.48 0.90 / 0.7 50 2
BP11511 6.10 4.70 / 1.05 0.90 0.48 / 0.76 0.7 50 2
BP118GG 6.10 4.70 / 1.05 0.90 0.48 / 0.76 0.7 50 1
BP11811 15.50 9.00 1.00 3.00 1.60 0.90 2.50 1.00 0.7 100 1
BP12511 9.20 5.25 / / 6.00 4.30 2.50 1.00 2.0 500 3
BP12611 4.35 3.45 0.50 1.90 1.48 0.90 1.80 1.12 0.7 100 2
BP12911-04254H0A 13.35 10.85 / / 1.50 0.90 2.00 0.80 0.8 40 2
BP13501 6.90 4.40 / / 2.00 1.20 3.00 1.00 1.4 100 1
BP13502 14.00 9.50 / / 2.40 1.50 3.00 1.00 2.1 100 3
BP13504 13.00 9.50 / / 2.00 1.20 3.00 1.00 2.9 100 2.5
BP13506 13.00 9.50 / / 2.40 1.50 3.00 1.00 1.0 100 3
BP13801 7.70 6.00 / / 1.80 1.20 2.00 1.00 1.0 60 2
BP13803 8.90 7.20 / / 1.80 1.20 2.00 1.00 1.0 60 2
BP13901 6.10 4.60 / / 1.45 1.00 0.80 0.70 1.0 40 2
BP13902 14.00 12.50 / / 1.45 1.00 0.80 0.80 1.0 40 2
BP14711 12.30 9.00 1.50 2.10 1.80 1.00 3.90 1.20 0.7 90 3
BP14811 5.30 3.90 0.70 2.30 2.05 1.20 2.70 0.60 0.6 44 2
BP14901 7.00 4.50 / / 2.90 2.30 1.50 1.50 1.5 180 /
BP15111 5.90 4.40 2.20 5.00 4.00 2.50 3.80 2.60 1.0 120 1
BP15511 10.90 8.70 / 1.80 1.51 1.00 2.50 0.60 1.4 110 1
BP16501 11.00 8.00 / / 3.00 2.20 5.00 2.20 1.0 80 1
BP16211-07254H0A 10.90 8.30 / 2.54 1.50 1.00 1.75 / 1.0 70 3
BP16311 5.90 4.55 / / 0.75 0.45 1.10 0.60 0.7 35 0.5
BP16811 10.00 7.90 0.40 1.80 1.40 1.00 1.00 0.80 1.0 80 3
BP17011 9.00 5.80 / / 4.00 3.30 1.50 1.50 1.5 220 /
BP17022 11.50 7.00 / / 4.00 3.30 1.50 1.50 1.5 220 /
BP17311 15.05 11.05 / / 6.00 4.30 5.00 1.00 2.55 500 2
BP17511 9.50 7.90 / / 2.00 1.20 1.00 1.4 160 1
BP17611 16.20 13.30 / / 4.00 3.00 3.30 3.30 1.3 100 1
BP17701 8.80 6.30 0.40 1.60 1.35 0.90 1.75 0.60 2.0 110 1.5
BP17811 4.70 4.00 / / 0.85 0.45 4.80 0.70 0.6 70 1
BP17911 5.60 4.90 0.50 1.35 1.08 0.60 / / 0.4 20 1
BP18001 4.90 4.20 / / 2.80 / 1.00 0.80 0.7 50 1
BP18002 4.90 4.20 / / 2.80 / 1.00 0.80 0.7 80 1
BP18311 2.10 1.45 0.55 1.30 1.10 0.70 / / 1.7 60 1
BP18401 29.00 23.00 0.50 3.50 3.00 2.00 / / 2.0 100 2
BP18402 9.50 6.50 0.50 3.00 2.50 1.50 2.50 1.50 2.0 65 2
BP18511 6.60 4.60 / 2.00 1.50 0.90 1.50 1.20 1.0 80 2
BP18811 9.00 4.60 / / 3.20 2.00 4.00 1.90 1.5 100 2
BP19011 11.80 9.00 / / 2.00 1.20 3.00 1.50 2.8 150 1
BP19022 11.80 9.00 / / 2.00 1.20 3.00 1.50 2.8 150 1
BP19501 9.50 8.00 / / 3.60 3.20 1.00 1.00 1.5 150 3
BP19601 8.10 3.60 / / 3.20 2.40 / / 2.0 150 3
BP20201 3.70 3.10 0.40 1.80 1.50 1.00 1.00 0.50 0.6 40 1
BP21401 6.00 3.80 / 3.50 3.00 2.00 1.60 1.50 1.5 110 1
BP22201-033001H0A 16.00 12.50 2.30 2.00 1.48 1.00 1.50 1.10 1.0 70 2
BP22301 16.00 9.50 1.00 9.00 5.00 4.00 3.00 2.00 4.0 50 1
BP22802 6.20 5.40 / / 2.20 1.50 0.50 1.50 0.6 50 1
BP23011 6.00 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 40 1
BP23511 7.75 6.30 / 2.10 1.80 1.20 1.20 1.00 1.0 120 3
BP24111 5.50 4.30 0.40 1.80 1.48 1.00 0.75 0.50 1.0 70 3
BP24211 13.00 9.50 / / 2.80 2.00 3.00 1.00 2.5 150 2
BP24611 22.75 13.75 0.75 10.00 8.00 6.00 1.25 2.00 6.0 500 1
BP25212 5.60 4.00 0.90 1.20 1.18 0.70 1.30 0.50 0.9 110 1
BP25921 6.50 4.50 / / 2.50 1.50 2.00 1.50 1.0 150 1
BP26005 4.95 3.55 / / 0.75 0.42 1.00 0.40 0.8 35 15M
BP26011 5.15 3.75 / / 1.30 0.90 1.00 0.80 1.0 60 3
BP26021 4.90 3.75 / / 1.30 0.90 1.00 0.80 1.0 60 3
BP26211-06254B0A 8.90 5.30 / / / 1.00 / 1.75 1.0 70 3
BP26311 20.00 18.30 0.40 1.80 1.50 1.00 2.75 1.00 1.0 40 1
BP26511 6.00 4.30 0.40 1.80 1.48 1.00 1.75 0.80 1.0 70 3
BP26611 9.20 6.90 0.55 1.80 1.48 0.80 4.40 0.65 1.0 70 1
BP26711-02254A0A 4.90 3.50 / / / 1.00 1.10 / 1.0 70 2
BP26711-13254A0A 4.90 3.50 / / / 1.00 14.10 / 1.0 70 2
BP26721-12254A0A 5.50 3.50 / / / 1.00 1.10 / 1.0 70 2
BP26721 5.40 3.50 1.00 2.00 1.48 1.00 / 1.48 1.0 70 2
BP26811 16.50 10.00 / / 2.40 1.50 2.50 1.00 4.0 100 2.5
BP27011 5.70 4.50 0.40 1.50 1.18 0.70 0.80 0.50 0.6 40 1
BP27211 13.20 10.00 / / 2.80 2.00 2.60 1.20 1.7 96 2
BP27711 5.90 4.20 / / 1.20 0.76 2.00 0.60 1.2 55 1
BP28511 4.00 3.00 0.50 1.30 1.00 0.60 2.00 0.60 1.0 50 1
BP28711-06254E0A 6.00 4.40 / / / 1.00 1.75 / 1.0 70 2
BP29111 5.80 4.30 / 1.40 1.26 0.80 1.20 0.50 0.9 80 1
BP29311-04254100A 7.00 5.30 / / / 1.00 1.75 / 1.0 15 0.2
BP29511 8.03 6.00 3.60 4.00 3.00 2.00 3.20 1.02 1.0 100 1
BP31011 7.25 5.50 / / 2.00 1.30 1.50 1.00 1.0 65 1
BP31111-04254E0A 9.00 7.30 / / / 1.00 1.75 / 1.0 70 3
BP31221-02508A0A 5.00 3.30 / / / 1.00 1.75 / 0.6 70 1
BP31311-04508A0A 5.50 4.30 / / / 1.00 1.75 / 1.0 70 3
BP32611 10.00 7.00 / / 2.40 1.30 / / 1.2 120 3
BP32711-08254H0A 10.00 7.30 / / / 1.00 1.75 / 1.0 70 1
BP33022 2.70 1.70 / 1.80 1.48 1.00 / 1.48 0.8 60 0.1
BP33111 3.90 1.90 / / 0.96 0.60 1.00 1.70 0.4 35 1
BP33511-03254H0A 7.00 5.20 1.10 / / 1.00 2.90 / 2.3 70 1
BP33511 7.70 5.20 0.40 1.80 1.48 1.00 2.90 0.65 2.3 70 1
BP33611-06254H0A 6.00 4.30 / / / 1.00 1.75 / 1.0 70 1
BP33701 2.50 1.80 / 2.00 1.50 0.90 0.80 1.00 0.6 80 1
BP33711 6.00 4.30 0.40 1.80 1.48 1.00 0.75 0.50 1.0 40 1
BP33721 2.50 1.80 / 2.00 1.50 0.90 0.80 1.00 0.6 80 1
BP33731 3.00 2.00 0.30 2.00 1.50 0.90 1.00 1.00 0.7 80 1
BP33811 9.00 7.30 0.40 1.80 1.40 1.00 1.75 0.50 1.0 40 1
BP34601 3.20 2.10 0.40 1.80 1.40 1.00 1.50 1.50 1.0 60 1
BP35111 9.85 7.00 / 5.40 4.10 2.60 2.20 2.10 2.3 100 3
BP35211 5.10 2.90 0.80 2.10 1.60 1.00 / 1.60 1.5 60 2
BP35511-02350H0A 5.50 4.30 / / 1.48 1.00 / / 1.4 70 2
BP35711 5.80 3.30 / / 3.70 3.00 2.00 2.00 1.0 100 1
BP35811 3.30 2.05 0.25 1.76 1.48 1.00 / 1.15 / / /
BP35911 4.90 3.90 0.40 1.80 1.50 1.00 1.75 / 1.0 70 1
BP36111 18.05 10.20 / / 4.45 3.00 2.95 2.00 3.0 180 0.5
BP36121 21.95 14.50 / / 4.45 3.00 2.95 2.50 3.0 180 0.5
BP36321 3.80 2.80 / / 1.50 1.00 0.75 1.10 0.6 40 1
BP36722 7.50 5.05 0.40 1.80 1.50 1.00 1.30 0.60 0.7 60 2
BP37011 6.45 5.65 0.50 1.60 1.15 0.70 / 1.00 0.6 70 1
BP37711 6.25 3.55 0.50 2.00 1.46 1.00 1.30 0.50 1.7 80 0.5
BP37811 8.00 5.50 / / 3.00 2.10 2.50 1.16 1.0 70 1
BP38011 6.55 5.65 0.50 1.60 1.15 0.70 2.00 1.00 0.6 70 1
BP38621 4.50 3.50 0.50 1.50 1.18 0.70 / / 0.8 80 1
BP38811 4.30 2.80 / 2.00 1.48 1.00 1.00 1.48 0.8 70 1
BP39211 4.20 3.00 0.40 2.00 1.80 1.00 2.00 1.35 1.0 60 1
BP39411-0100001A 8.00 5.80 0.50 1.80 1.48 1.00 0.80 0.80 1.0 100 1
BP39411-0225001A 8.00 5.80 0.50 1.80 1.48 1.00 0.80 0.80 1.0 100 1
BP39411 8.00 5.80 0.50 2.00 1.48 1.00 0.80 0.80 1.0 120 1
BP38421-0225001A 8.00 5.80 0.50 1.80 1.48 1.00 0.80 0.80 1.0 100 1
BP39421 8.00 5.80 0.50 1.80 1.48 1.00 0.80 0.80 1.0 100 1
BP39911 15.00 11.00 / / 2.70 1.60 6.50 1.60 3.8 750 3
BP40011-04254AQ0A 6.50 5.30 / / / 1.00 1.75 / 1.0 40 1
BP40011 6.50 5.30 0.40 1.80 1.50 1.00 1.75 0.50 1.0 40 1
BP40111 31.00 22.00 / / 5.00 4.00 / / 8.00 480 1
BP40211 6.25 4.25 / 3.20 2.20 1.20 1.00 2.20 0.5 70 1
BP40311-02102E0A 9.00 7.30 / / / 1.00 1.75 / 1.0 70 3
BP40801 5.60 3.50 0.50 2.30 1.68 1.00 / 1.40 1.9 80 1
BP40802 6.40 3.60 0.50 2.10 1.80 1.00 / 1.50 1.9 80 1
BP41221 2.60 1.70 / 1.80 1.50 0.90 0.80 1.00 0.6 80 1
BP41301 22.02 11.00 / / 3.80 5.00 / 1.80 3.0 150 2
BP41811 7.85 6.00 0.40 1.80 1.48 1.00 / / 0.9 60 3
BP41911 16.80 13.50 / / 2.70 1.80 4.80 1.60 1.0 120 3
BP42511 5.80 3.50 0.40 1.80 1.48 0.90 2.00 0.80 0.5 90 3
BP42611 9.50 7.30 / 2.40 2.18 1.50 1.75 1.00 1.1 70 3
BP42711-10254F0A 8.00 5.30 / / / 1.00 3.00 / 1.0 70 3
BP42911 18.00 12.00 / / 6.60 4.60 2.50 2.00 1.0 120 1
BP43011 5.20 4.00 / / 1.02 0.60 1.50 0.50 0.6 10 1
BP43021 5.20 4.00 / / 1.02 0.60 / / 0.6 10 1
BP43031 5.50 4.00 / / 1.02 0.60 1.50 0.50 0.9 40 2
BP43041 5.20 4.00 / / 1.02 0.60 1.50 0.50 0.6 40 1
BP43211 17.93 10.30 / / 2.54 1.42 / / 0.92 20 1
BP43311-02350H0A 6.50 5.30 / / 1.48 1.00 1.75 / 1.0 70 1
BP43411 6.10 4.60 / 1.80 1.48 1.00 4.60 0.50 1.0 70 1
BP43511 6.90 5.70 / / 2.00 1.00 1.50 1.00 0.6 90 1
BP43611 4.50 3.00 / / 2.00 1.00 1.20 1.00 0.6 60 1
BP43712-08254A0A 7.50 5.30 / / / 1.00 1.75 / 1.0 70 3
BP43811-02152A0A 5.50 4.30 / / / 1.00 1.75 / 1.4 70 3
BP43911 15.00 11.00 / / 2.70 1.00 5.00 1.60 4.0 800 3
BP44011-0100001A 5.00 3.30 / 2.00 1.48 1.00 0.70 1.50 1.0 90 1
BP44611 5.50 4.00 0.50 0.80 1.50 1.00 0.60 0.70 1.0 60 1
BP44621 5.80 4.00 0.50 1.80 1.50 1.00 0.60 0.70 1.5 70 1
BP44811-A03113A 8.00 5.30 / / / 1.00 1.75 / 1.0 30 1
BP45211 6.50 5.30 / 1.20 1.00 0.60 1.75 0.60 0.7 40 2
BP45711 8.80 5.90 / 1.90 1.57 1.00 5.00 0.89 1.0 70 4
BP46011 6.50 5.00 0.40 1.80 1.48 1.00 1.75 0.50 1.0 30 1
BP46211 6.00 4.00 / / 1.60 1.10 / / 1.3 50 1
BP46221 5.70 4.00 / / 1.60 1.10 / / 1.0 50 1
BP46311 5.50 4.30 0.40 1.80 1.48 1.00 0.90 0.50 1.0 40 1
BP46321 3.30 2.30 / / 1.49 1.00 / / 0.8 100 1
BP47511 5.30 3.10 0.40 2.00 1.48 1.00 0.60 1.45 1.0 60 1
BP47521 5.00 3.10 0.40 2.00 1.48 1.00 0.60 1.45 1.0 60 1
BP50111 10.30 6.40 0.40 3.56 2.54 1.47 7.65 3.1 70 1
BP51311 6.45 3.60 0.50 1.80 1.48 1.00 0.80 1.45 1.0 70 1
BP41211 4.60 3.60 0.50 1.80 1.50 1.00 1.00 0.80 0.6 20 1
BP50811 4.80 3.50 0.50 1.80 1.50 0.90 / / 1.0 40 2
BP52811 4.50 2.80 0.40 1.80 1.40 1.00 1.50 1.53 1.0 40 3
BP52111 2.80 2.00 0.40 1.60 1.48 1.00 1.50 0.60 0.6 30 1
BP46321 2.90 1.90 0.40 1.80 1.48 1.00 1.80 1.80 0.8 100 1
BP23021 6.00 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 30 1
BP47911 9.10 7.60 0.40 1.90 1.48 1.00 1.80 0.80 8.3 60 1
BP46311 5.50 4.30 0.40 1.80 1.48 1.00 0.90 0.50 1.0 40 1
BP55011 5.40 3.60 0.50 1.80 1.55 1.00 0.60 0.70 1.5 70 1
BP54711 5.80 4.80 0.40 1.80 1.50 1.00 3.00 0.60 0.8 50 1
BP54311 10.00 7.30 0.40 1.80 1.48 1.00 0.80 0.50 1.0 70 2
BP51911 2.70 1.40 0.40 1.80 1.30 0.90 / / 0.7 60 1
BP26211 8.90 5.30 0.40 1.80 1.48 1.00 1.50 0.50 2.0 70 3
BP55111 7.00 4.30 / / 1.48 1.00 3.00 0.50 1.5 100 3
BP56911 6.10 4.80 0.70 2.30 1.50 1.00 2.00 0.70 0.5 70 3
BP51811 5.10 3.40 0.40 2.00 1.50 1.00 1.60 1.50 0.5 40 1
BP54911 13.50 9.50 / / 2.00 1.40 3.30 1.00 3.5 180 2
BP53211 11.20 7.00 0.50 2.00 1.48 0.90 2.20 / 2.0 40 1
BP53511 3.10 1.35 0.60 1.60 1.18 0.70 7.40 1.10 1.2 100 0.5
BP57711 8.50 6.30 / / 2.50 1.50 / / 1.0 110 1
BP54611 3.80 2.30 0.50 1.50 1.28 0.80 1.20 0.60 1.0 55 1
BP54811 5.10 3.50 0.50 2.30 2.00 1.20 1.50 2.00 0.7 100 3
BP56511 23.50 18.50 0.50 3.00 2.50 1.50 4.00 1.50 1.0 30 1
BP54511 4.80 3.20 0.50 1.80 1.48 1.00 1.00 1.48 1.0 50 1
BP54521 5.10 3.20 0.50 1.80 1.48 1.00 1.00 1.48 1.3 70 1
BP38611 3.50 2.30 0.40 1.50 1.28 0.80 1.10 0.50 0.8 50 1
BP50931 5.10 3.70 0.50 1.80 1.50 1.00 0.60 0.70 1.3 130 1
BP45211 6.50 4.70 0.40 1.20 1.00 0.60 1.75 0.60 0.7 40 2
BP13921 14.00 12.50 / / 1.45 1.00 1.50 0.80 1.0 40 2
BP56911 6.10 4.80 0.70 2.30 1.50 1.00 2.00 0.70 0.5 70 3
BP26311 20.00 18.30 0.40 1.80 1.48 1.00 2.75 1.00 1.0 40 1
BP59111 5.80 4.70 0.50 1.10 1.00 0.60 2.00 0.60 1 40 2
BP30221 9.10 3.60 1.00 7.00 6.00 5.00 1.50 6.00 1 95 1
BP56711 18.00 12.00 / / 6.00 4.60 2.50 2.00 4 120 3
BP51341 6.65 4.90 0.50 1.80 1.48 1.00 1.30 1.45 1.4 100 1
BP60111 16.00 9.65 / / 2.67 2.10 2.30 0.64 2.5 120 3
BP50941 5.40 3.70 0.50 1.80 1.50 1.00 0.60 0.70 1.3 130 1
BP53811 7.80 3.20 0.50 3.90 2.30 1.30 5.20 2.00 4.5 110 0.5
MP818-11GG 4.20 3.00 0.40 1.50 1.28 0.80 1.75 0.50 1.0 80 1
MP818-21GG 4.40 3.00 0.40 1.50 1.28 0.80 1.75 0.50 1.0 80 1
MP819-11GG 4.50 3.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
MP819-21GG 5.00 3.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
MP820-11GG 5.50 4.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
MP820-21GG 6.00 4.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
MP821-11GG 6.50 4.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
MP821-21GG 7.00 4.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
MP821-31GG 7.50 4.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
MP821-41GG 8.00 4.30 0.40 1.50 1.28 0.80 1.75 0.50 1.0 70 1
BP52411 8.00 5.30 0.40 1.80 1.48 1.00 4.60 0.50 1.0 30 1
BP50711 7.20 4.20 / / 2.00 1.50 1.80 0.90 1.8 200 1
BP57411 12.00 8.50 / / 2.60 1.70 2.00 1.50 9.0 300 3
BP62411 5.60 2.30 0.80 3.90 2.40 1.30 4.40 2.20 1.2 120 3
BP57211 7.00 5.00 0.50 2.50 2.00 1.40 2.50 1.40 1.0 100 1
BP62111 9.50 6.50 / / 2.50 1.70 2.50 2.00 1.5 110 2
BP43041 5.20 4.00 / / 1.02 0.60 1.50 0.50 0.6 40 1
BP51711 4.50 3.30 0.40 1.80 1.50 1.00 1.75 0.50 0.7 50 1
BP63811 5.00 3.80 0.40 1.80 1.50 1.00 1.75 0.50 0.6 30 1
BP63511 3.70 2.60 0.40 1.80 1.48 1.00 1.20 0.50 0.8 50 1
BP61611 12.50 8.00 2.00 3.20 2.70 2.00 3.50 2.40 4.5 100 1
BP64211 6.90 4.90 1.50 2.70 1.50 0.90 3.90 1.80 1.7 50 1
BP55911 9.70 7.70 0.50 2.20 1.85 1.20 3.00 1.00 1.6 130 1
BP69711 8.50 5.50 / / 3.00 2.10 5.50 1.20 1.5 40 1
BP58111 4.50 3.30 0.40 1.80 1.28 0.80 1.75 0.50 0.7 35 1
BP63121 4.20 3.20 0.50 1.80 1.50 1.00 0.50 0.90 1.0 50 1
BP63111 5.50 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 40 1
PB68511 10.00 5.20 0.40 1.80 1.48 1.00 2.90 0.65 2.3 70 1
BP24211 13.00 9.50 / / 2.80 2.00 3.00 1.00 2.5 150 2
BP60211 5.80 4.30 0.40 1.80 1.48 1.00 / / 1.0 70 3
BP57011 8.20 5.30 0.50 1.40 1.02 0.60 1.50 0.50 1.0 70 2
BP62521 5.50 4.30 0.40 1.80 1.48 1.00 / / 1.0 70 3
BP62511 5.70 4.30 0.40 1.80 1.48 1.00 1.75 0.90 1.0 70 3
BP46611 7.30 5.30 0.40 1.40 1.26 0.80 2.50 0.50 0.7 40 2
BP71711 2.90 1.40 0.40 2.00 1.50 1.00 / 1.50 0.7 100 1
PB59811 8.60 7.20 2.50 1.20 0.90 0.48 / 0.76 0.7 50 1
BP71791 3.40 2.40 0.40 2.00 1.50 1.00 / 1.50 0.7 100 1
BP72931 5.50 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 40 3
BP66721 2.55 1.55 0.30 2.00 1.50 1.00 0.85 1.53 0.7 100 1
BP66711 5.75 4.00 0.40 1.50 1.02 0.60 1.50 0.50 0.8 40 1
BP73711 9.00 6.00 1.00 6.00 3.00 1.40 4.00 1.80 3.0 80 1
BP75211 5.30 3.50 1.00 2.00 1.48 1.00 1.10 1.48 1.0 70 2
BP76311 4.50 3.30 0.40 1.80 1.50 1.00 1.75 0.50 1.0 30 1
BP78122 6.50 4.00 / 2.80 2.50 1.90 2.30 0.60 2.00 20 1
BP77611 21.50 13.90 / / 4.45 3.00 2.95 2.50 3.0 160 3
BP64711 6.40 5.00 0.30 1.05 0.90 0.40 1.00 0.50 0.7 50 1
BP78311 8.00 6.30 0.40 1.60 1.35 0.90 2.75 0.60 2.0 110 1.5
BP69311 4.90 4.00 / 1.50 1.02 0.60 1.10 0.50 0.6 30 1
BP74711 5.50 4.30 3.90 0.40 1.28 0.80 4.20 0.50 1.0 70 1
BP69911 5.80 4.30 0.40 1.40 1.26 0.80 1.70 0.50 0.9 80 1
BP74811 6.00 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 70 2
BP73311 5.10 3.60 0.50 1.80 1.50 1.00 1.0 0.70 1.0 6 1
BP73321 5.40 3.60 0.50 1.80 1.50 1.00 1.80 0.70 1.5 70 1
BP67211 7.00 4.00 0.40 1.80 1.50 1.00 2.90 0.65 1.7 60 1
BP64511 10.50 8.50 0.50 2.00 1.50 1.00 / / 0.8 70 1
BP81611 9.50 7.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 70 3
BP623XX 4.20 3.00 0.40 1.80 1.48 1.00 1.75 0.50 1.0 40 1
BP77111 3.20 2.20 0.50 2.00 1.50 1.00 0.60 0.60 1.0 100 1
BP73511 6.60 5.00 0.40 4.00 2.98 2.00 1.40 1.00 1.0 60 2
BP78931 5.40 4.00 / / 1.20 0.70 2.50 0.60 4.8 50 1
BP77411 15.80 12.50 / / 2.70 1.80 3.50 1.60 1.0 120 3
BP79611 6.50 4.80 0.40 1.50 1.28 0.80 1.75 0.50 1.3 50 3
BP82921 12.00 9.40 0.40 1.85 1.70 1.00 2.00 1.30 1.5 100 3
BP78531 4.20 3.10 0.40 1.80 1.48 1.00 1.00 0.50 1.0 40 1
BP65311 6.00 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 40 2
BP58711 9.60 7.40 0.40 2.00 1.48 1.00 4.00 1.35 1.4 40 3
BP58721 10.10 7.40 0.40 2.00 1.48 1.00 4.00 1.35 1.5 50 3
BP75611 13.40 9.00 1.20 4.60 2.90 2.00 / / 2.0 60 3
BP72921 3.40 2.00 0.30 2.60 1.48 1.00 / / 0.6 70 1
BP76711 6.00 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.0 40 1
BP86911 7.00 5.50 2.50 2.00 1.48 1.00 1.50 0.75 1.0 70 2
BP87201 4.00 3.00 0.50 2.00 1.50 1.00 1.15 1.50 0.8 120 1
BP80621 8.80 7.20 0.50 2.00 1.50 1.00 1.00 1.00 2.0 70 2
BP80611 5.60 3.70 0.40 1.80 1.48 1.00 1.00 0.50 1.0 40 1
BP86811 4.80 3.75 / / 2.08 1.50 1.50 1.00 1.0 70 1
BP90831 5.40 4.40 / 1.05 1.00 0.50 1.40 0.50 0.8 110 1
BP60411 8.30 6.30 0.40 1.80 1.48 1.00 2.50 0.80 1.0 100 3
BP60421 9.00 6.30 0.40 1.80 1.48 1.00 2.50 0.80 1.0 100 3
BP88511 6.55 4.30 0.40 1.80 1.48 1.00 1.30 0.50 1.0 40 1
BP75111 2.70 1.70 0.40 1.80 1.48 1.00 1.75 0.50 0.6 100 1
BP92101 10.00 7.50 2.50 2.50 2.00 1.40 2.50 1.00 2.0 110 2
BP50211 5.60 4.90 0.50 1.35 1.08 0.60 / / 0.6 40 1
BP90911 2.80 1.85 0.35 1.80 1.50 1.00 1.05 0.60 2.1 60 1
BP92411 6.10 4.40 0.60 2.00 1.50 0.90 4.00 0.60 0.8 100 2
BP66731 6.80 5.00 0.40 1.50 1.02 0.60 1.50 0.50 0.80 40 1
BP86311 5.10 4.10 1.40 1.80 1.48 1.00 1.20 0.50 1.0 40 1
BP82211 7.00 5.30 0.40 2.00 1.48 1.00 2.20 1.50 1.0 70 3
BP82511 7.20 5.00 0.60 1.05 0.90 0.48 2.00 0.50 0.7 50 1
BP85911 5.70 2.50 / / 1.48 1.00 1.40 0.80 1.10 80.00 100ma
BP92102 10.690 7.50 2.50 2.50 2.00 1.40 2.50 1.00 2 110 2
BP95911 11.00 8.00 / / 5.00
3.00 2.50 2.50 2.5 210 3
BP96811 5.60 3.20 / 1.80 1.58 0.90 2.90 1.20 1.7 120 2
BP86711 5.30 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.00 50 1
BP96011 13.50 10.30 0.40 2.00 1.48 1.00 1.75 0.85 2.50 135 3
BP96021 12.50 10.30 0.40 2.00 1.48 1.00 1.75 0.85 1.50 95 3
BP96031 12.00 10.30 0.40 2.00 1.48 1.00 1.75 0.85 1.50 95 3
BP96811 9.00 7.30 0.40 1.80 1.48 1.00 2.50 0.50 1.00 70 3
BP97011 7.50 6.50 / / 4.00 2.00 2.50 2.00 0.80 100 1
BP94311 7.00 5.30 0.40 1.80 1.48 1.00 6.00 0.50 1.00 70 1
BP94321 7.00 5.30 0.40 1.80 1.48 1.00 1.70 0.50 1.00 70 1
BP94711 5.80 4.30 0.40 1.80 1.48 1.00 1.75 0.50 1.00 70 2
BP73011 8.00 5.30 0.40 1.80 1.48 1.00 / 0.50 1.00 70 3
BP99721 5.50 4.30 0.40 1.50 1.28 0.80 1.75 0.50 1.00 40 0.5
BP96411 5.60 4.90 0.50 1.35 1.08 0.60 / / 0.60 40 1
BP95602 3.70 2.10 0.90 3.90 2.50 2.00 1.10 2.50 1.00 150 1
BP95603 3.50 2.60 0.40 3.10 2.55 1.90 / / 0.80 130 1
BP89811 4.50 2.70 0.40 1.90 1.52 1.00 1.75 0.50 1.00 65 1
BP85111 9.95 7.40 / / 4.20 2.60 2.50 2.00 1.90 130 2
BP99611 8.50 3.00 1.00 4.00 2.50 1.90 8.00 2.50 1.20 80 3
BP102811 5.40 4.00 0.50 4.00 3.00 1.80 1.50 2.60 1.00 170 3
BP98411 7.00 5.30 0.40 1.80 1.48 1.00 5.60 0.50 1.00 70 3
BP99111 7.70 6.50 0.40 1.80 1.48 1.00 4.60 0.50 1.00 70 3
BP101011 9.00 7.00 / / 2.50 1.80 3.00 1.20 2.00 120 3
BP50961 5.70 3.70 0.50 1.80 1.50 1.00 0.60 0.70 0.70 95 1
BP50971 6.00 3.70 0.50 1.80 1.50 1.00 0.60 0.70 1.00 120 1
BP105311 8.00 5.30 0.40 1.80 1.48 1.00 2.50 0.50 1.00 70 1
BP17611 16.20 13.30 / / 4.00 3.00 3.30 3.30 1.3 100 1
BP13804 8.30 6.40 / / 1.80 1.20 2.00 1.00 1.5 80 2
BP106511 6.50 4.80 0.50 1.80 1.50 1.00 2.00 0.60 1.1 80 3
BP49541 5.40 3.20 0.80 1.80 1.50 1.00 / 0.70 1.3 60 1
BP49551 5.10 3.20 0.00 1.80 1.50 1.00 / 0.70 1.3 60 1
BP27031 5.70 4.50 0.60 1.50 1.18 0.70 2.40 0.50 0.6 40 1
Learn more about How to order special pogo pin , If you have special requirements please contact us
Application of 2a through hole spring pin manufacturers
Learn more type of Pogo pin
Contact us
Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long. As the leading electronic components manufacturer in China, CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
